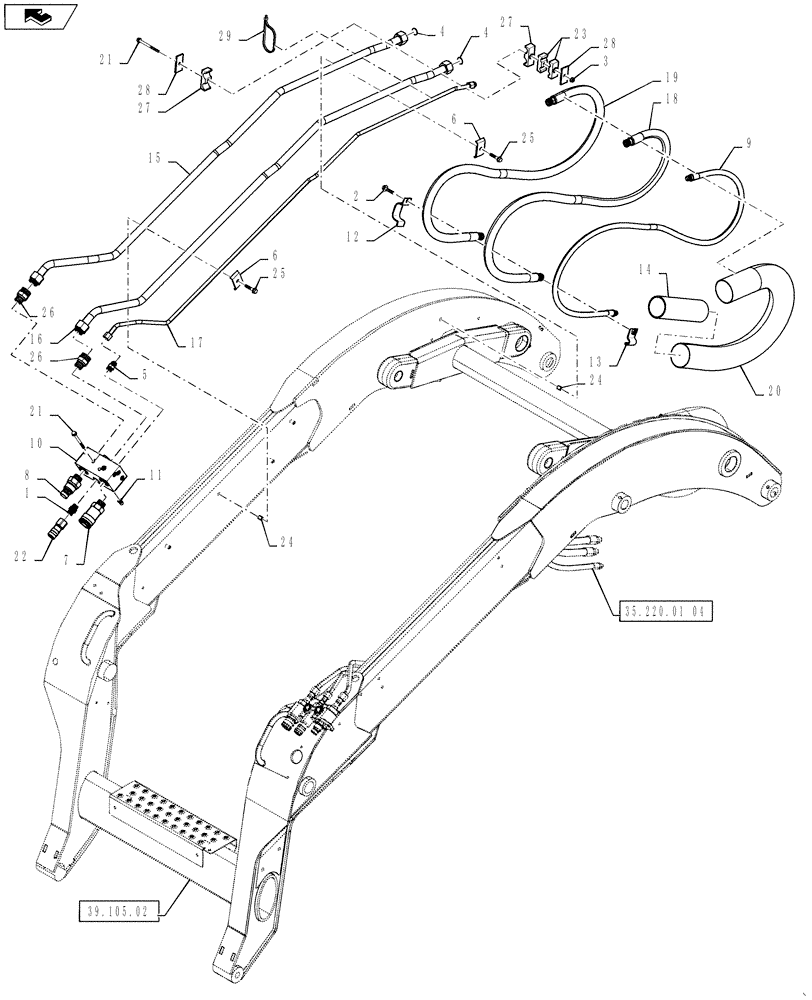

Запчасти Case SV300 (35.734.AH[02]) - 2ND AUX HYD, HIGH FLOW, ARM PLUMBING (SV300,TV380) (35) - HYDRAULIC SYSTEMS

1

259619

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB

Union

1шт.

2

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

4

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

5

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

6

84254045

CLAMP,66mm L

Tube

2шт.

7

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Female Quick Coupler

1шт.

8

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Male Quick Coupler

1шт.

9

84482352

HYDRAULIC HOSE,9.53mm ID x 2021mm L, SAE 100R17

Assembly, Case Drain

1шт.

10

84486899

HYDRAULIC VALVE

Flushing

1шт.

11

84531322

RIVET,12.7mm OD x 21.5mm L

2шт.

12

84282424

HOSE CLAMP

1шт.

13

84299413

HOSE CLAMP

1шт.

14

84423192

SLEEVE

Protective

1шт.

15

84533277

TUBE

High Flow Auxiliary

1шт.

16

84533279

HYD TUBE

High Flow Auxiliary

1шт.

17

84533281

HYD TUBE

High Flow, Case Drain

1шт.

18

84356599

HYDRAULIC HOSE,19.05mm ID x 1835mm L, SAE 100R13

Assembly, High Flow

1шт.

19

84356600

HYDRAULIC HOSE,19.05mm ID x 1875mm L, SAE 100R13

Assembly, High Flow

1шт.

20

84362111

GUARD,85mm ID x 90mm OD x 1070mm L

Hose

1шт.

21

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

M8 X 100

3шт.

22

385357A1

COUPLING

3/8 Inch Female Quick Disconnect

1шт.

23

87000149

CLAMP

Hydraulic Tube

1шт.

24

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

2шт.

25

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

Tapping

2шт.

26

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

27

1546028C1

CLAMP,25.4mm ID x 82mm L

Hydraulic Tube

1шт.

28

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Hose

1шт.
