Запчасти Case SV300 (35.701.AX[04]) - LOADER HYDRAULICS (SV300,TV380) AFTER JULY 31 2013 (35) - HYDRAULIC SYSTEMS

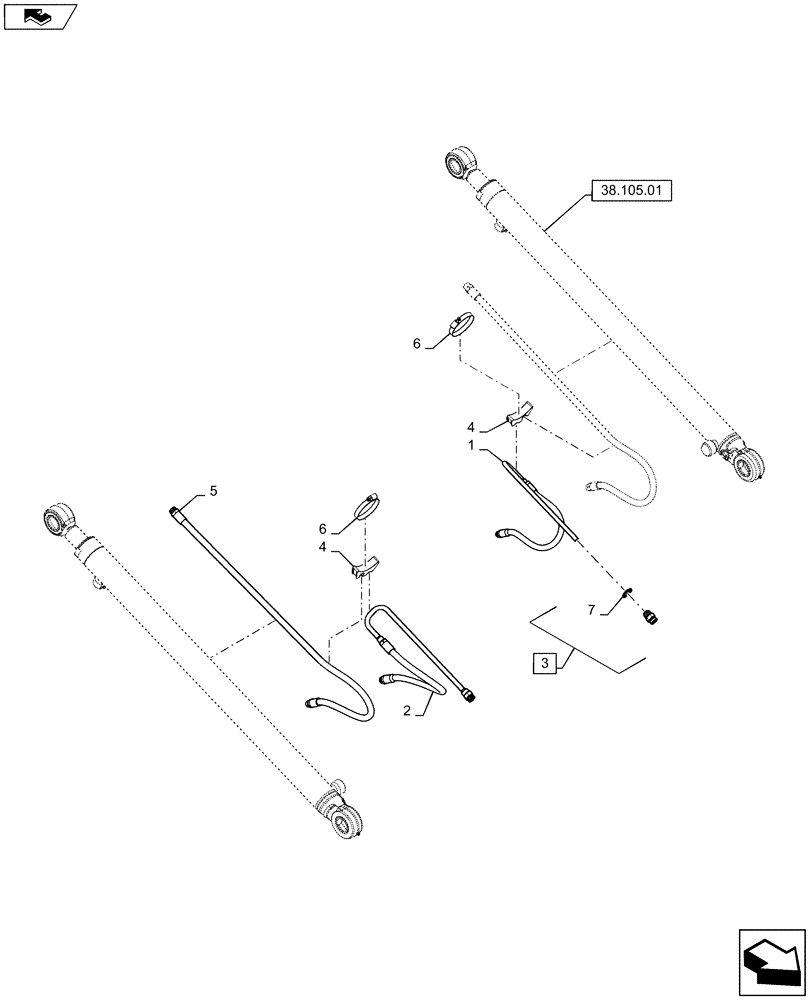

Схема запчастей Case SV300 - (35.701.AX[04]) - LOADER HYDRAULICS (SV300,TV380) AFTER JULY 31 2013 (35) - HYDRAULIC SYSTEMS
2
6
3
4
home
7
6
1
5
4
38.105.01

Артикул

Название

Примечание

Количество

1

47504629

HYD TUBE

Lift Cyl Base

2шт.

2

47505796

HOSE,10mm ID X 547mm L, SAE100R16

Lift Cyl Base, Years: -03-NOV-14

2шт.

2

47738631

HYDRAULIC HOSE,10mm ID x 572mm L, SAE 100R16

Lift Cyl Base , Start Year: 04-NOV-14

2шт.

3

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 7

2шт.

4

84255986

HOSE CLAMP

2шт.

5

84281674

HYDRAULIC HOSE,9.53mm ID x 1130mm L, SAE 100R17

Lift Cyl Rod

2шт.

6

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

2шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

Выбрано товаров: 8
