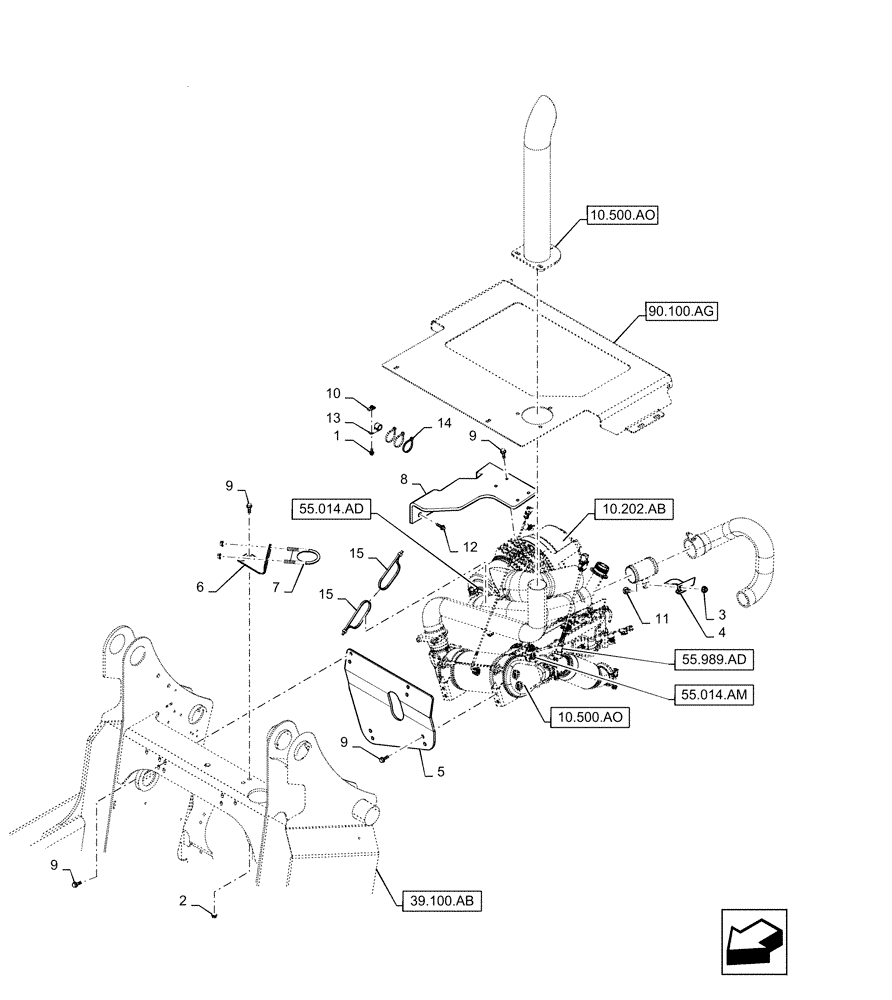

Запчасти Case SV280 (10.254.AD) - INTAKE & EXHAUST, MOUNTING (10) - ENGINE

1

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

2

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

3

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

4

47370315

BRACKET

Air Cleaner Coupler

1шт.

5

47418281

BRACKET

PMCAT Mounting

1шт.

6

47419796

MOUNT

Tailpipe Extension

1шт.

7

47428724

CLAMP

108mm L, Muffler

1шт.

8

47727131

BRACKET

Air Cleaner Vertical

1шт.

9

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

10

86625073

SPRING NUT,M6 x 1

1шт.

11

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

12

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

13

87037780

CLAMP,15.8mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

14

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

Nylon

2шт.
