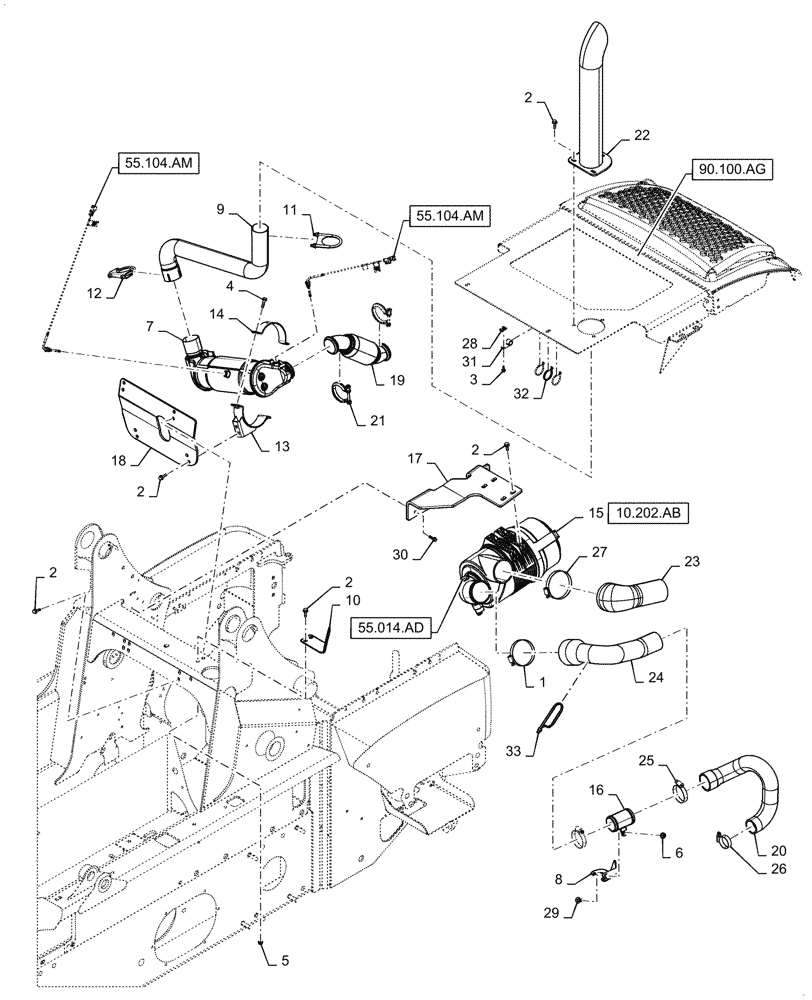

Запчасти Case SV280 (10.254.AD[01]) - INTAKE & EXHAUST (10) - ENGINE

1

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.

2

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

17шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

4

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

7

47365564

CATALYST

Muffler, PMC, Years: -29-MAR-17

1шт.

7

47898960

CATALYST

DOC, Start Year: 30-MAR-17

1шт.

8

47370315

BRACKET

Air Cleaner Coupler

1шт.

9

47418133

TUBE

Exhaust Talipipe

1шт.

10

47419796

MOUNT

Talipipe Extension Hanger

1шт.

11

47428724

CLAMP

Muffler

1шт.

12

47541188

CLAMP,68mm ID, Muffler

1шт.

13

47632616

CLAMP

W, PM-Cat Heat Resistant, Black

2шт.

14

47632617

CLAMP

Collar, Heat Resistant, Black

2шт.

15

47687166

AIR CLEANER

Assy

1шт.

16

47711885

FITTING

Intake Hose and CCV

1шт.

17

47727131

BRACKET

Air Cleaner

1шт.

18

47810683

ANGLE

W, PM-Cat Mounting

1шт.

19

47818901

EXHAUST SYSTEM PIPE

1шт.

20

47823397

INTAKE AIR HOSE

Coupller to Turbo

1шт.

21

84409146

PIPE CLAMP,63.5mm - 70mm

2шт.

22

84495949

EXTENSION

Exhaust Stack

1шт.

23

84531287

HOSE

Inlet Extension

1шт.

24

84551136

HOSE

Intake Air, Cleaner to Coupler

1шт.

25

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

2шт.

26

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

27

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

1шт.

28

86625073

SPRING NUT,M6 x 1

1шт.

29

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

30

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

31

87037780

CLAMP,15.8mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

32

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

33

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.
