(90.105.CU) - COVERS & INSULATION

Запчасти Case SV280 (90.105.CU) - COVERS & INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

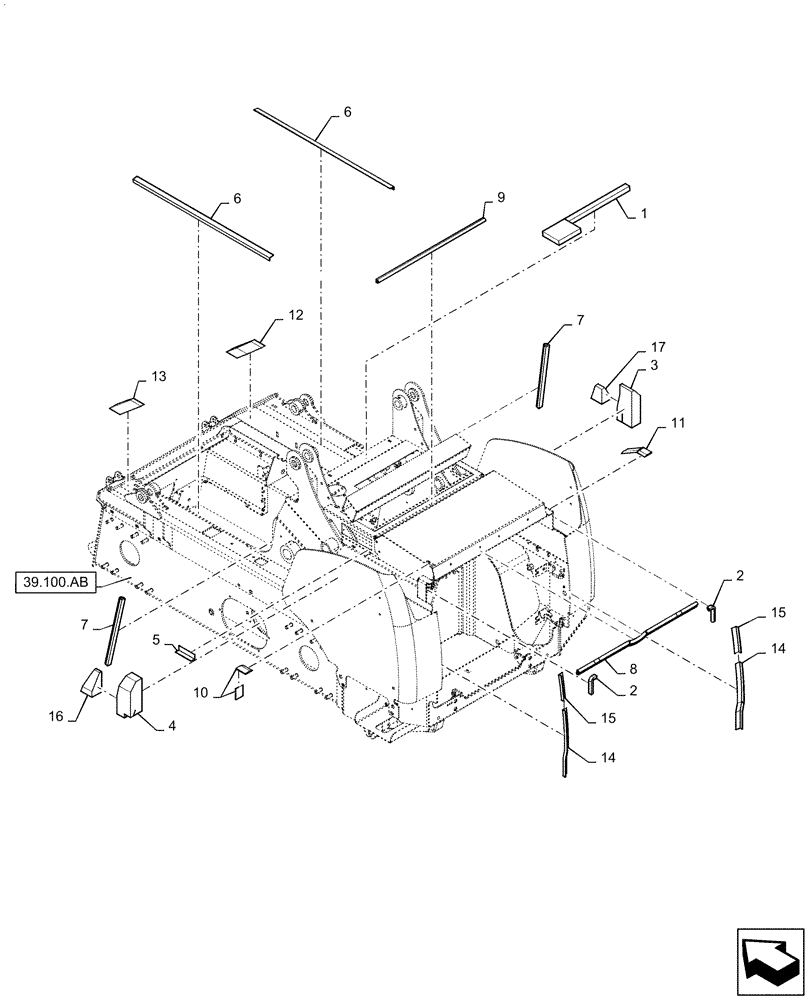

Схема запчастей Case SV280 - (90.105.CU) - COVERS & INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.100.ab
16
2
5
12
6
8
2
3
13
7
14
1
9
15
7
15
17
6
11
4
10
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47382475

FOAM INSULATION

Crossmember

1шт.

2

47725462

RUBBER SEAL,160mm L

Bulb

2шт.

3

47725518

FOAM INSULATION

RH, Fender Filler, Foam

1шт.

4

47725519

FOAM INSULATION

LH, Fender Filler, Foam

1шт.

5

47729710

SEAL

60mm L, Flap

2шт.

6

47729716

SEAL,1005mm L

1005mm L, Flap

2шт.

7

47729720

RUBBER SEAL,450mm L

450mm L, Adhesive

2шт.

8

47764946

SEALING STRIP,877mm L

877mm L, Bulb, Years: -10-JAN-17

1шт.

8

48084233

820mm L, Bulb, Start Year: 11-JAN-17

SEALING STRIP,820mm L

1шт.

9

47765041

SEAL

790mm L, Adhesive

1шт.

10

47766421

SEAL

69mm L, Flat Adhesive

2шт.

11

47766422

SEALING STRIP

190mm L, Flat Adhesive

1шт.

12

47769975

FOAM INSULATION

RH, Front Plate

1шт.

13

47769985

FOAM INSULATION

LH, Front Plate

1шт.

14

47775394

SEALING STRIP

420mm L, Flap

2шт.

15

47779306

SEALING STRIP

150mm L, Flap

2шт.

16

84598220

FOAM INSULATION

LH, Hood

1шт.

17

84598643

FOAM INSULATION

RH, Hood

1шт.
