Запчасти Case SV280 (90.100.AU) - HOOD & STRUT (90) - PLATFORM, CAB, BODYWORK AND DECALS

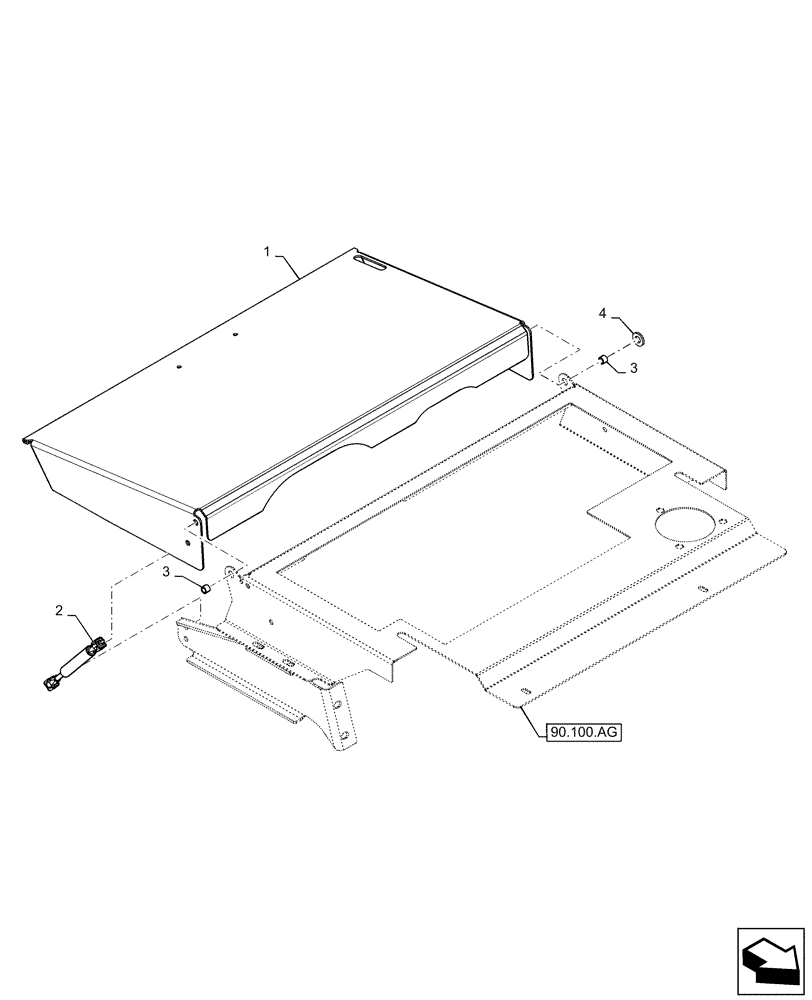

Схема запчастей Case SV280 - (90.100.AU) - HOOD & STRUT (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
3
4
1
3
90.100.ag

Артикул

Название

Примечание

Количество

1

47439783

HOOD

822mm L, Tilt, No AC, Gray

1шт.

2

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

186.84mm L, Springhood Assist

1шт.

3

87026609

SPACER,8.48mm ID x 12.7mm OD x 9.53mm L

2шт.

4

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

Выбрано товаров: 4
