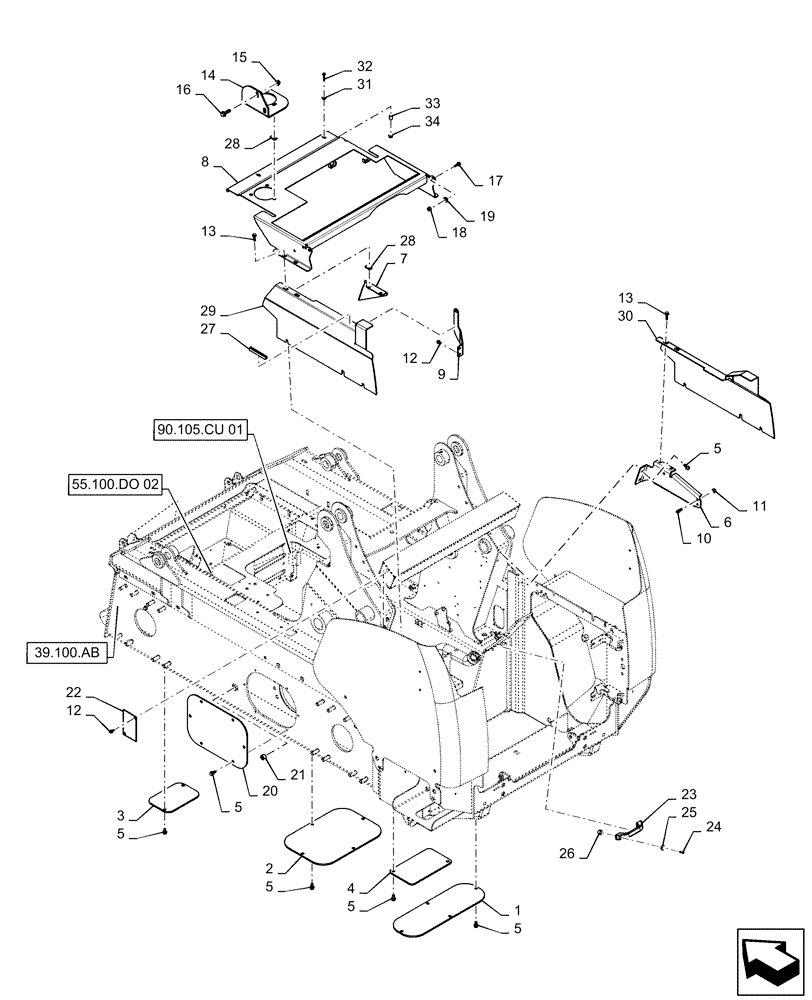

Запчасти Case SV280 (90.100.AG) - HOODS & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47717894

PLATE,524.6mm L x 174.6mm W x 6.35mm Thk

1шт.

2

47717914

PLATE,431.6mm L x 303.6mm W x 6.35mm Thk

1шт.

3

47717905

PLATE,225mm L x 150mm W x 6.35mm Thk

1шт.

4

47717909

PLATE,275mm L x 160mm W x 6.35mm Thk

1шт.

5

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

32шт.

6

47670334

ANGLE

RH, Cover Mounting

1шт.

7

47670330

ANGLE

LH, Cover Mounting

1шт.

8

47671574

PANEL

Rear Deck

1шт.

9

47498985

ANGLE

Hood Lock Tab

1шт.

10

189609A1

BALL STUD,M8 x 1.25

2шт.

10

47974869

BALL STUD,M8 x 1.25 x 32.2mm L, 10mm Ball OD

, Start Year: 26-SEP-16

2шт.

11

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

12

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

13

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

14

47461845

PLATE

Exhaust Stack

1шт.

15

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

16

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

17

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

19

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

20

84295151

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

21

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

4шт.

22

84370417

PLATE,141mm L x 86mm W x 3.68mm Thk

2шт.

23

406256A1

HANDLE

Rear Hood

1шт.

24

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

25

86625264

LOCK WASHER,Ext Tooth, M5

, Years: -12-OCT-15

2шт.

26

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

27

87702286

TRIM,Bulk, 1/8" x 30480mm L

220mm L

1шт.

28

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

7шт.

29

47675617

PANEL

LH, Cover, Years: -12-OCT-15

1шт.

29

47889949

PANEL

LH, Cover, Start Year: 13-OCT-15

1шт.

30

47675604

PANEL

RH, Cover, Years: -12-OCT-15

1шт.

30

47889951

PANEL

RH, Cover, Start Year: 13-OCT-15

1шт.

31

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

32

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

2шт.

33

87036415

SPACER,9.25mm ID x 13.72 OD x 19.05mm L

2шт.

34

86511444

FLANGE NUT,Hex, M6 x 1

2шт.
