(10.414.BE[01]) - VAR - 761068 STANDARD FAN BELT

Запчасти Case SV250 (10.414.BE[01]) - VAR - 761068 STANDARD FAN BELT (10) - ENGINE

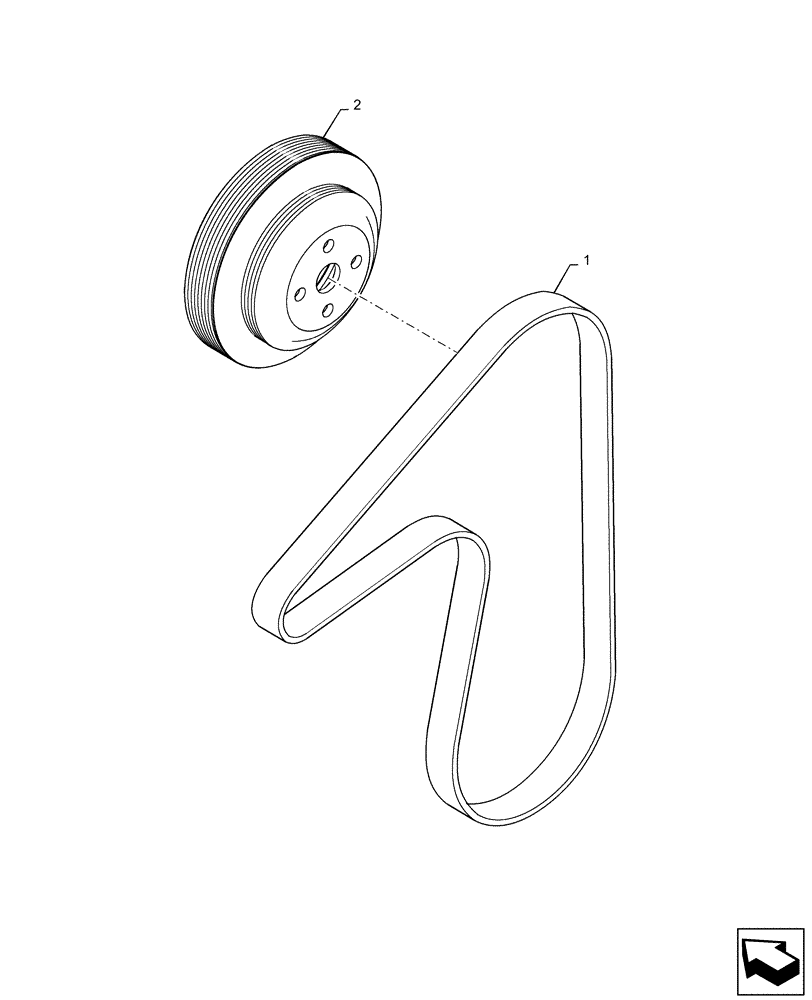

Схема запчастей Case SV250 - (10.414.BE[01]) - VAR - 761068 STANDARD FAN BELT (10) - ENGINE
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84514684

V-BELT,28.48mm W x 1420.70mm L, 8 Ribs

1шт.

To Determine Between Std or High Flow Belt Please Measure Pulley OD and See Ref. 2 For Dimensions

1шт.

2

87693079

PULLEY,180mm OD x 64mm W

1шт.
