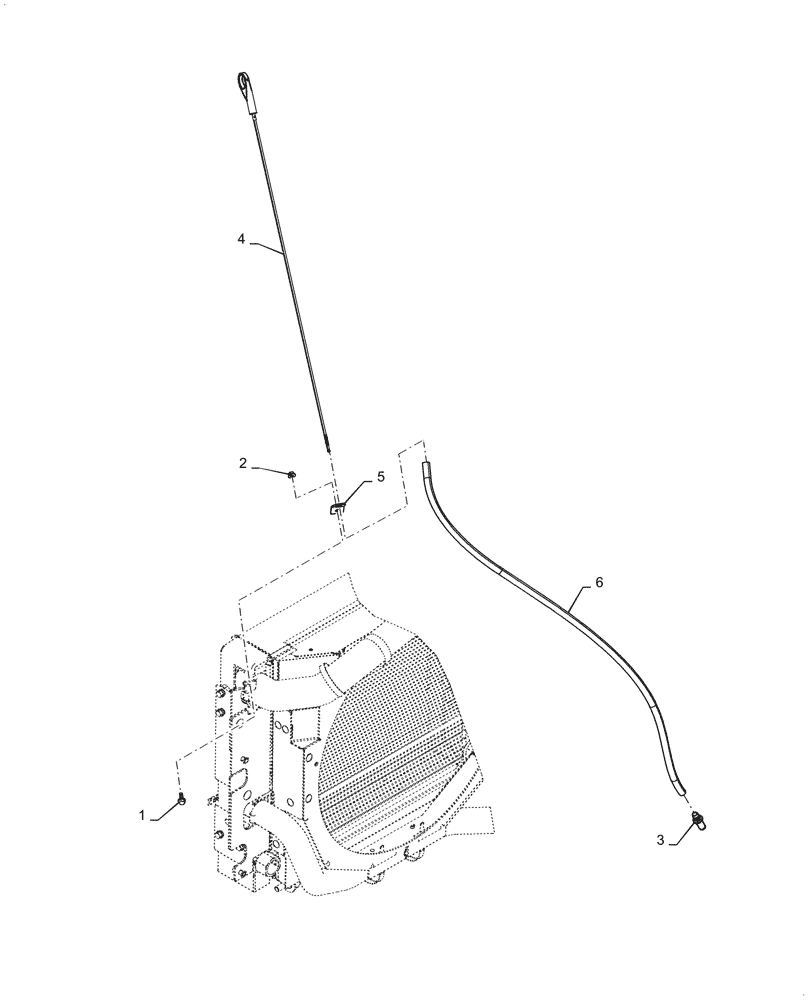

Запчасти Case SV250 (10.304.AS) - ENGINE OIL DIPSTICK (10) - ENGINE

1

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

2

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

3

47566177

ADAPTER

Engine to Dipstick Tube

1шт.

4

47602863

DIPSTICK,1192.1mm L

1шт.

5

84405628

BRACKET

Dipstick Tube

1шт.

6

87669375

TUBE,12.7mm OD x 944mm L

1шт.
