Запчасти Case SV250 (90.108.AB) - MODEL DESIGNATION DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

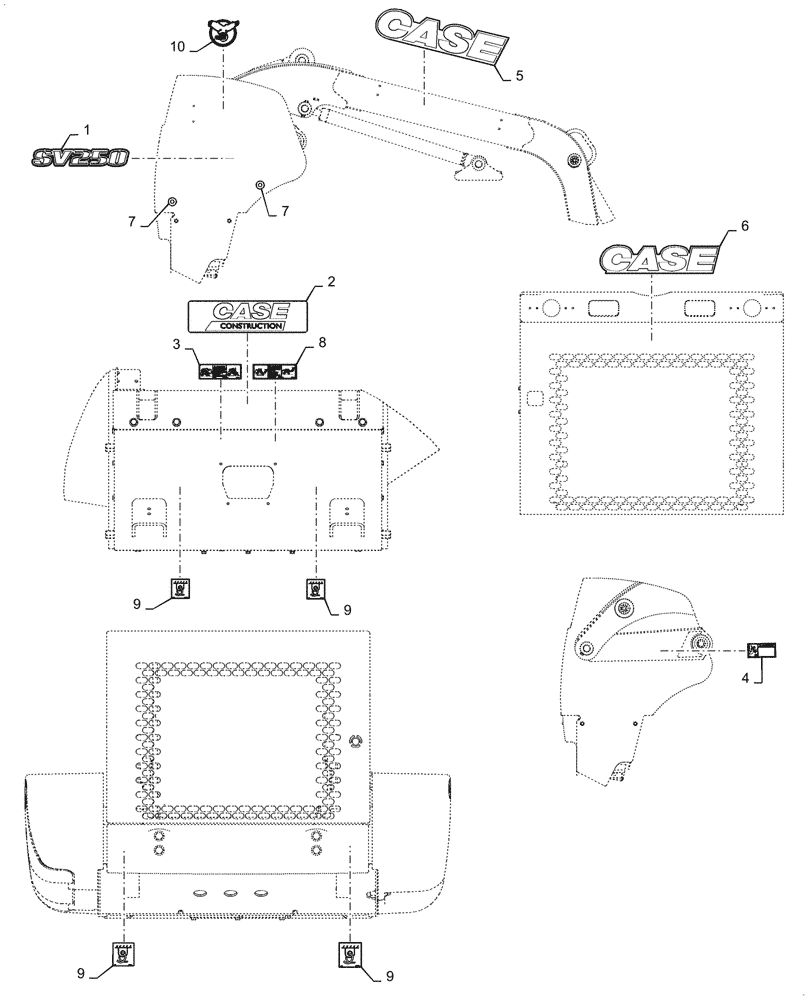

Схема запчастей Case SV250 - (90.108.AB) - MODEL DESIGNATION DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
5
9
2
9
9
4
1
10
6
9
7
3
7

Артикул

Название

Примечание

Количество

1

84493206

DECAL

SV250, Model Designation, Years: -03-OCT-16

2шт.

1

47919033

DECAL

SV250, Model Designation, Start Year: 04-OCT-16

2шт.

2

84385194

DECAL

Front, Case Logo

1шт.

3

84367563

DANGER DECAL

Boom Crush Hazard

1шт.

4

86521673

WARNING DECAL

Pinch Point

2шт.

5

84492069

DECAL,200mm H x 786mm L

Case Impact Logo

2шт.

6

84492067

DECAL

Case Impact Logo, 102mm H

1шт.

7

299274A2

COVER,35mm OD

Lexan

4шт.

8

84374298

WARNING DECAL

No Rider, Man Lift

1шт.

9

84315529

DECAL,64mm L x 71mm W

Tie Down

4шт.

10

84468362

DECAL,194mm x 170mm H

Eagle Logo

2шт.

Выбрано товаров: 11
