Запчасти Case SV250 (90.108.AA[01]) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

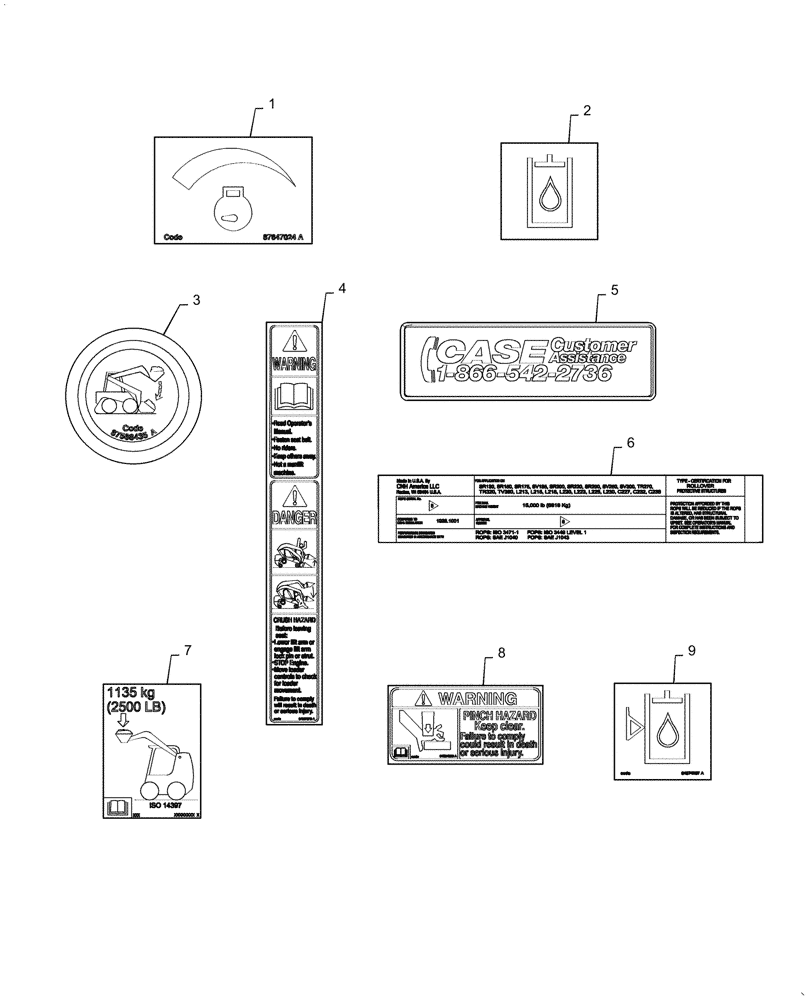

Схема запчастей Case SV250 - (90.108.AA[01]) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
3
5
6
9
4
7
1
2

Артикул

Название

Примечание

Количество

1

87647024

DECAL

Throttle, 34mm x 23mm

1шт.

2

251753A1

DECAL

Hydraulic Oil, 50mm x 50mm

1шт.

3

87568435

DECAL

Boom Down, 24mm OD

1шт.

4

84367570

WARNING DECAL

Lift Arm, Danger, 290mm x 40mm

1шт.

5

84311902

DECAL

Customer Assistance, 72mm x 22mm

1шт.

6

NSS

NOT SOLD SEPARAT

Model/Serial Plate

1шт.

7

84350661

DECAL

Operating Capactiy, 40mm x 55mm

1шт.

8

84394350

WARNING DECAL

Pinch Point, 30mm x 59mm

2шт.

9

84374297

DECAL

Hydraulic Oil Level, 50mm x 50mm

1шт.

Выбрано товаров: 9
