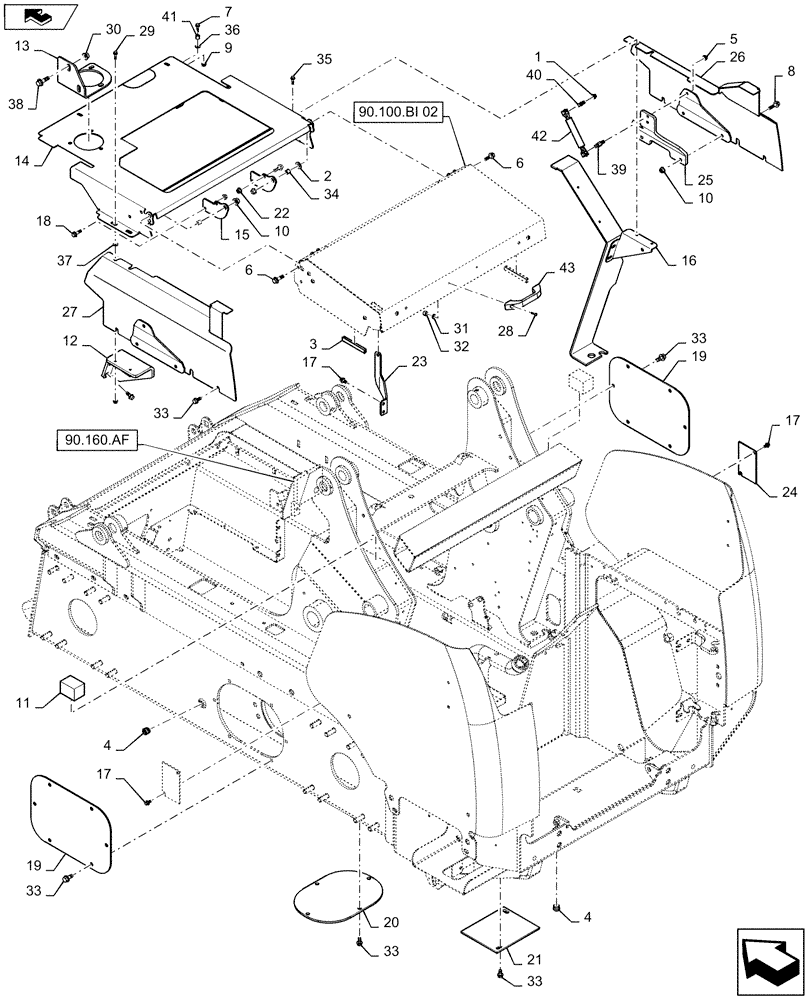

Запчасти Case SV250 (90.100.BI[01]) - REAR HOOD AND CHASSIS ACCESS COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

43362

NUT,M8 x 1.25, Cl 10

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

3

291186

PROTECTION STRIP,9.9mm W

Edging

1шт.

4

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

1шт.

6

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

7

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

, Years: -25-NOV-14

2шт.

8

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

, Years: -25-NOV-14

2шт.

8

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

, Start Year: 25-NOV-14

4шт.

9

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

11

47357144

FOAM INSULATION,70mm L x 50.8mm W x 50.8mm H

Deck, Years: -27-JAN-14

2шт.

12

47430921

PLATE

Cover Mounting, Years: -25-NOV-14

1шт.

12

47670330

ANGLE

LH Cover Mounting, Start Year: 25-NOV-14

1шт.

13

47432047

PLATE

Exhaust Stack

1шт.

13

47461845

PLATE

Exhaust Stack, Start Year: 28-JAN-14

1шт.

14

47553252

PANEL

Rear Deck

1шт.

14

47613344

PANEL

Rear Deck, Years: 28-JAN-14-25-NOV-14

1шт.

14

47671574

PANEL

Rear Deck, Start Year: 25-NOV-14

1шт.

15

47428367

PLATE

Double

2шт.

16

84281046

MOUNTING PLATE

Cover Mounting, Years: -25-NOV-14

1шт.

16

47670334

ANGLE

RH Cover Mounting, Start Year: 25-NOV-14

1шт.

17

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

18

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

19

84295151

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

Chassis Access

2шт.

20

84299800

COVER PLATE

Chassis Access

1шт.

21

84299809

COVER PLATE

Plumbing Access

1шт.

22

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

23

84317996

LOCKING TAB

Hood Lock Tab

1шт.

24

84370417

PLATE,141mm L x 86mm W x 3.68mm Thk

Cover

2шт.

25

84551697

BRACKET

Gas Strut Support

1шт.

26

84601861

PANEL

Cover RH, Years: -25-NOV-14

1шт.

26

47675604

PANEL

Cover RH, Start Year: 25-NOV-14

1шт.

27

84601863

PANEL

Cover LH, Years: -25-NOV-14

1шт.

27

47675617

PANEL

Cover LH, Start Year: 25-NOV-14

1шт.

28

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

29

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

, Years: -25-NOV-14

2шт.

30

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

31

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

32

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

33

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

26шт.

34

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

35

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

2шт.

36

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

37

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

, Years: -25-NOV-14

4шт.

38

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

39

109498A1

STUD

Ball, 5/16" - 18

1шт.

40

189609A1

BALL STUD,M8 x 1.25

1шт.

41

254697A1

SPACER

Pivot, Spring, Years: -25-NOV-14

2шт.

41

87036415

SPACER,9.25mm ID x 13.72 OD x 19.05mm L

Pivot, Spring, Start Year: 25-NOV-14

2шт.

42

400472A1

SPRING,10mm Rod, 38.1mm Stroke

Hood Assist

1шт.

43

406256A1

HANDLE

Rear Hood

1шт.

44

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

Not Illustrated, Start Year: 25-NOV-14

2шт.

45

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

Not Illustrated, Start Year: 25-NOV-14

7шт.
