Артикул
Название
Примечание
Количество
1
47532226
KIT

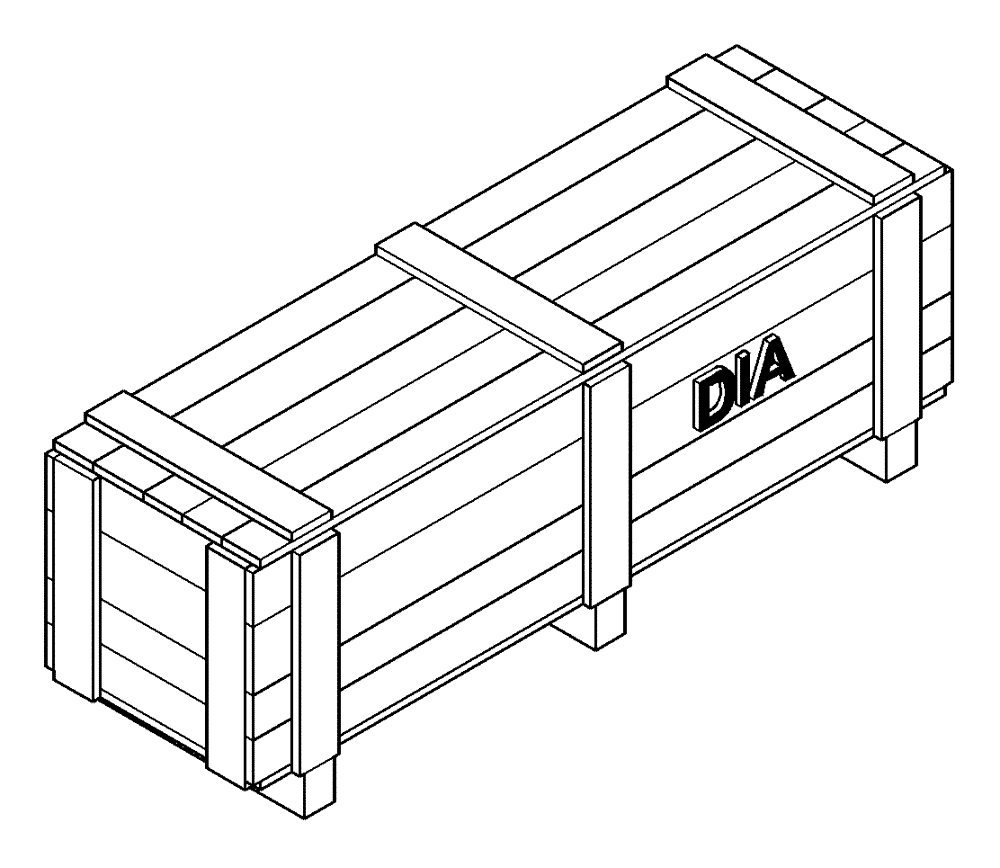

Complete HVAC, Incl 2 - 119
1шт.
4
127083A1
ELBOW,16mm OD x 17mm OD Bead
2шт.
5
229197A1
SQUARE NUT,M8 x 1.25, Cl 8
2шт.
6
348452A1
FASTENER,Push-In, 37mm L, Nylon
10шт.
7
350459
CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8
1шт.
8
400472A1
SPRING,10mm Rod, 38.1mm Stroke
1шт.
9
412679A2
SPRING,Extension, 22.5mm OD x 173mm L
2шт.
10
47376521
CONDENSER
Assy
1шт.
11
47428367
PLATE
Doubler, Gray
2шт.
12
47498985
ANGLE
Hood Lock Tab, Gray
1шт.
13
47521067
REINFORCEMENT
LH, Tilt Hood, Gray
1шт.
14
47521161
REINFORCEMENT
RH, Tilt Hood, Gray
1шт.
15
47537889
GAS STRUT,372mm Extended, 327mm Compressed
Enclosed Cab
1шт.
16
47574582
SCREEN
Tilt Hood, Gray
1шт.
17
47627004
GUARD
Fan
1шт.
18
47627999
HEATER HOSE,15.5mm ID, Formed
1шт.
19
47707866
FITTING,5/8” Hose Barb Union
2шт.
20
47723346
INSTRUCTION
HVAC Bracket Components
1шт.
21
47741862
AIRCOND. COMPRESSOR,12V, W/Clutch, W/ Pulley
Assy
1шт.
22
47821526
RECEIVER-DRYER
Horizontal
1шт.
23
47894003
BRACKET
Spring Mount
2шт.
24
47918644
FASTENER,Pine Tree, 26.9mm L, Nylon
7шт.
25
47919014
DUCT
RH Air, Trim, Fiat Gray
1шт.
26
47919015
DUCT
LH Air, Trim, Fiat Gray
1шт.
27
47919725
BRACKET
Tensioner
1шт.
28
47929817
WIRE HARNESS
HVAC Jumper
1шт.
29
47939973
A/C HOSE
Discharge
1шт.
30
47939974
A/C HOSE
Suction
1шт.
31
47940035
A/C HOSE
Liquid
1шт.
32
47940039
A/C HOSE
Discharge
1шт.
33
47984178
HEATER
W/ HVAC
1шт.
34
47997458
INSTRUCTION
HVAC Kit, Sheet
1шт.
35
48031374
TRIM,Flare, 790mm L
2шт.
36
48033462
SEALING STRIP,684mm L
1шт.
37
48044060
INSTRUCTION
Heater Hoses Kit, Sheet
1шт.
38
48046988
V-BELT,14.24mm W x 963.6mm L, 4 Ribs
1шт.
39
48052200
TRIM PANEL
Rear, Lapbar, Fiat Gray
1шт.
40
48063671
INSTRUCTION
Heat/HVAC Trim, Sheet
1шт.
41
48067806
INSTRUCTION
HVAC Hose Component, Sheet
1шт.
42
504249332
FITTING,M35 x 1.5, 18mm
1шт.
43
642560
FITTING,5/8" Hose x 3/8" NPTF Beaded
1шт.
46
82012869
CABLE TIE,300mm L, Nylon, Black
2шт.
47
84272827
RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L
4шт.
48
84280313
AIR DUCT
Intake
1шт.
49
84285339
SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm
4шт.
50
84322838
PLATE
Cover, Tan
1шт.
51
84322901
PLATE
Cover, Yellow
1шт.
52
84338534
SEAL,Bulk 30.48m
Cut to Length, 885mm
1шт.
53
84347258
DECAL
HVAC
1шт.
54
84357678
HOSE,15.5mm ID x 1635mm L
1шт.
55
84357840
HOSE,15.5mm ID x 2740mm L
1шт.
56
84361522
BRACKET
L
1шт.
57
84362109
HOSE PROTECTION,46mm ID x 50mm OD x 1070mm L
1шт.
58
84362126
FOAM INSULATION
Roof
1шт.
59
84370302
FOAM INSULATION
HVAC Box
1шт.
60
84370705
BRACKET
147mm L
1шт.
61
84380240
BRACKET
Relay
1шт.
62
84387904
COMPRESSION SPRING,Extension, 225mm OD x 100mm L
2шт.
63
84388261
BRACKET
Control Rod Sheild
1шт.
64
84410905
BRACKET
Retention Spring
1шт.
65
84411489
FOAM INSULATION
Center Upper Chassis
1шт.
66
84416163
FOAM INSULATION
RH Upper Chassis
2шт.
67
84416164
FOAM INSULATION
RH Upper Chassis
2шт.
68
84483262
BRACKET
Control Rod Sheild, Gray
1шт.
69
84559122
BRACKET
Water Valve & Dryer
1шт.
70
84561441
GUARD
Fan
1шт.
71
86050286
FLANGE BOLT,M10 x 20mm, Cl 8.8
1шт.
73
86511833
SCREW,Phillips Drive, Pan HD, M6 x 40mm
4шт.
74
86511841
BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8
2шт.
75
86511843
BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8
2шт.
76
86511845
BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd
2шт.
78
86619800
FLANGE NUT,M6 x 1, Cl 8
2шт.
79
86619801
FLANGE NUT,M8 x 1.25, Cl 8
6шт.
80
86624183
WASHER,6.6mm ID x 25mm OD x 1.6mm Thk
4шт.
81
86625021
HOSE CLAMP,17.5mm - 31.7mm, Worm Gear
2шт.
82
86625034
HOSE CLAMP,90.4mm - 114.3mm, Worm Gear
2шт.
83
86625073
SPRING NUT,M6 x 1
4шт.
84
86637978
CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type
1шт.
85
86637995
CLAMP,27mm, Coat, 10.3mm Bolt Hole, P Type
1шт.
86
86705425
BOLT,Hvy Hex, M8 x 80mm, Cl 8.8
1шт.
87
86729669
SWITCH
Blower
1шт.
89
86729675
SWITCH,5000 Ohm
Tempurature
1шт.
90
87000227
SWITCH, A/C HIGH PRE
5000 PSI Max
1шт.
91
87015931
BOLT,Hvy Hex, M6 x 35mm, Cl 8.8
4шт.
92
87016586
SPRING NUT,Multi-Thd, M8 x 1.25
4шт.
93
87028323
HEX SOC SCREW,Btn Head, M8 x 1.25 x 25mm, Cl 8.8
4шт.
94
87035448
SPACER,8.48mm ID x 12.7mm OD x 12.7mm L
2шт.
95
87310592
JAM NUT,7/16" - 28, Gr 5
2шт.
96
87355337
RELAY,12V, 45A
1шт.
97
87443511
CLAMP,22mm - 26mm, CTB-24, Style C
10шт.
98
87520839
VALVE
Package
1шт.
100
87567192
HEATER HOSE,5/8” Bulk Roll 500 FT, Return
Cut to Length, 2350mm
1шт.
101
87573379
CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type
1шт.
102
87617163
HEATER HOSE,15.00 mm ID, 18.00 mm ID x 73.00 mm, SAE 20R4
1шт.
103
87622384
BUSHING,11mm ID x 20mm OD x 28mm L
1шт.
104
87649945
BRACKET
1шт.
105
87649979
BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8
1шт.
106
87655042
SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk
2шт.
107
87655046
SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk
1шт.
108
87669161
VENT
Global Louver
6шт.
109
9671714
FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
2шт.
110
9706690
NUT,M8 x 1.25, Cl 8
1шт.
112
9804258
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
5шт.
113
9804261
BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd
4шт.
114
9804276
FLANGE NUT,Hex, M6 x 1, Cl 8
5шт.
117
99469380
GASKET,33mm ID x 45mm OD x 2.8mm Thk
1шт.
118
D39696
CLAMP,25.40mm - 13.49mm Bolt, CTD
5шт.
119
L18331
CABLE TIE,375.9mm L, Nylon, Black
2шт.
Выбрано товаров: 119
