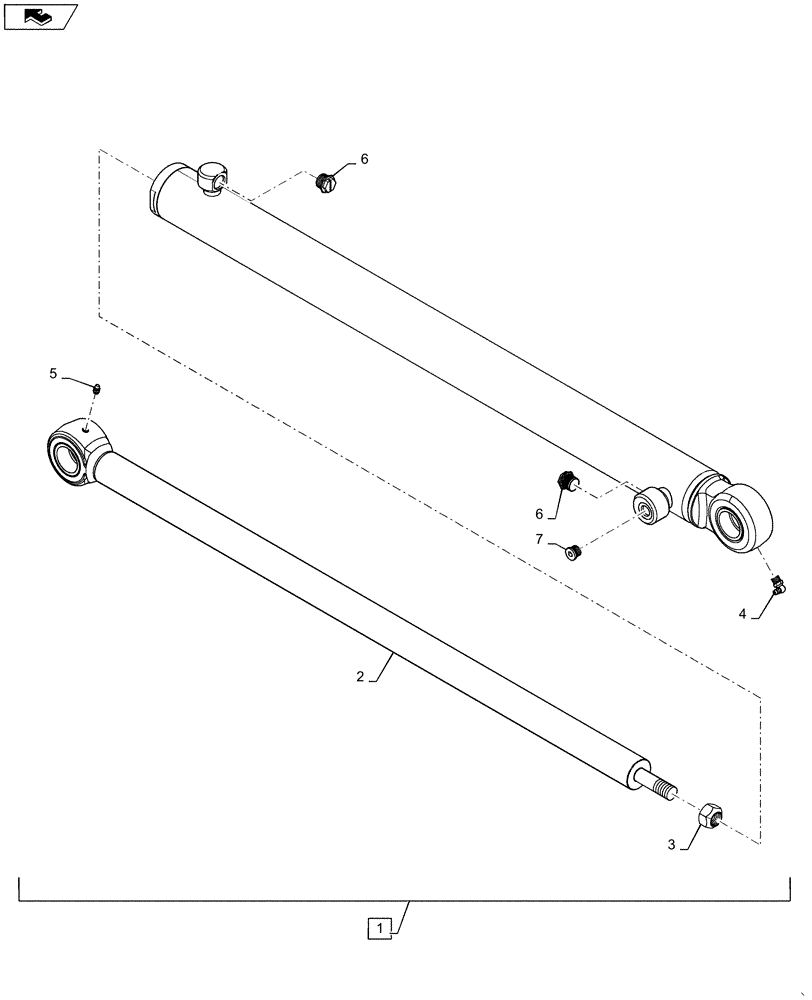

Запчасти Case SV250 (35.701.CB) - BOOM LIFT CYLINDER, RH (35) - HYDRAULIC SYSTEMS

1

84494544

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 891.5mm Stroke

Boom Lift, RH, Complete, Incl 2 - 8

1шт.

2

84372035

PISTON ROD

44.4mm Dia

1шт.

3

280724

LOCK NUT,3/4" - 16

1шт.

4

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

1шт.

6

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3/4" - 16, With Oring

2шт.

7

9625178

PLUG,9/16" - 18 ORB

1шт.

8

84480921

KIT

Boom Lift Cylinder, Not Shown

1шт.

9

84367717

PISTON ROD/GLAND,63.06mm Bore, 46mm Rod, 72.15mm W

Not Shown

1шт.
