Запчасти Case SV250 (35.353.AD[06]) - TRAVEL SPEED, E-H (35) - HYDRAULIC SYSTEMS

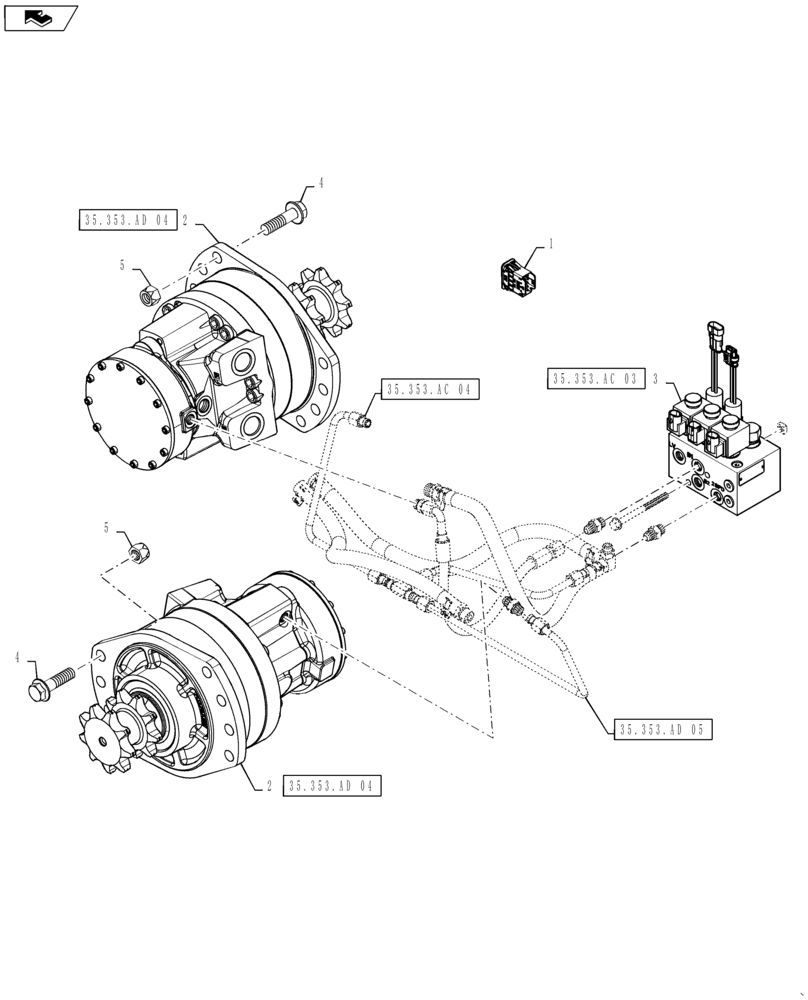

Схема запчастей Case SV250 - (35.353.AD[06]) - TRAVEL SPEED, E-H (35) - HYDRAULIC SYSTEMS
3
4
35.353.ad 04
5
35.353.ad 05
5
2
home
35.353.ac 04
2
35.353.ac 03
35.353.ad 04
1
4

Артикул

Название

Примечание

Количество

1

84388282

INDICATOR

High Speed, Located In LH A-Post In Cab, Not Illustrated

1шт.

2

84565752

HYDRAULIC MOTOR,Drive, 470 CC

2 Speed Drive Motor, 470cc, Complete

2шт.

2

84565752R

REMAN-HYD MOTOR,Drive, 470 CC

2 Speed Drive Motor, 470cc, Complete

2шт.

2

84565752C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

3

84597128

BRAKE VALVE

2 Speed, E-H Controls, Complete

1шт.

4

86512555

NUT,M16 x 2, Cl 10

12шт.

5

87675533

BOLT,M16 x 75.4mm, Cl 10.9

12шт.

Выбрано товаров: 7
