Запчасти Case SV250 (35.353.AD[03]) - TRAVEL SPEED, 2 SPEED (35) - HYDRAULIC SYSTEMS

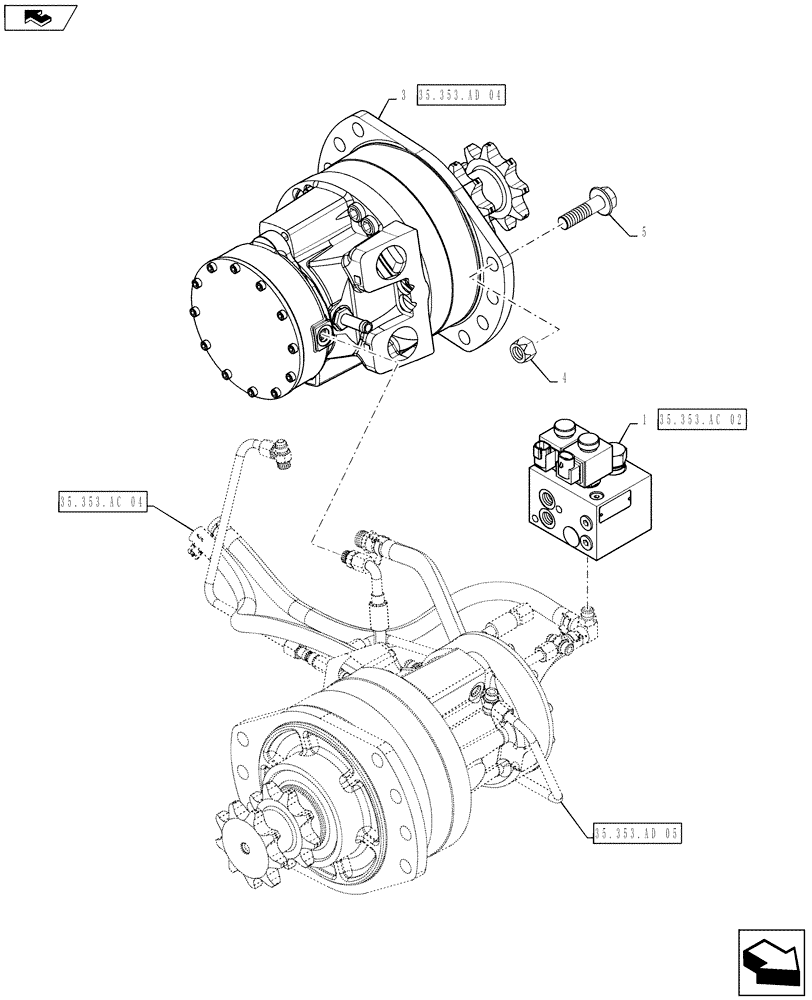

Схема запчастей Case SV250 - (35.353.AD[03]) - TRAVEL SPEED, 2 SPEED (35) - HYDRAULIC SYSTEMS
35.353.ad 04
4
35.353.ad 05
1
3
35.353.ac 02
home
5
35.353.ac 04

Артикул

Название

Примечание

Количество

1

84256531

BRAKE VALVE

2 Speed, Complete

1шт.

See Figure 35.353.AC(02) For Service Parts

1шт.

2

84388282

INDICATOR

High Speed, Located In LH A-Post In Cab, Not Shown

1шт.

3

84565752

HYDRAULIC MOTOR,Drive, 470 CC

2 Speed Drive Motor, 470cc, Complete

2шт.

See Figure 35.353.AD(04) For Service Parts

1шт.

3

84565752R

REMAN-HYD MOTOR,Drive, 470 CC

2 Speed Drive Motor, 470cc, Complete

2шт.

3

84565752C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

4

86512555

NUT,M16 x 2, Cl 10

12шт.

5

87675533

BOLT,M16 x 75.4mm, Cl 10.9

Hex, M16 - 2 x 60mm, Class 10.9, ZND

12шт.

Выбрано товаров: 9
