Запчасти Case SV250 (35.353.AD[01]) - TRAVEL SPEED, 1 SPEED (35) - HYDRAULIC SYSTEMS

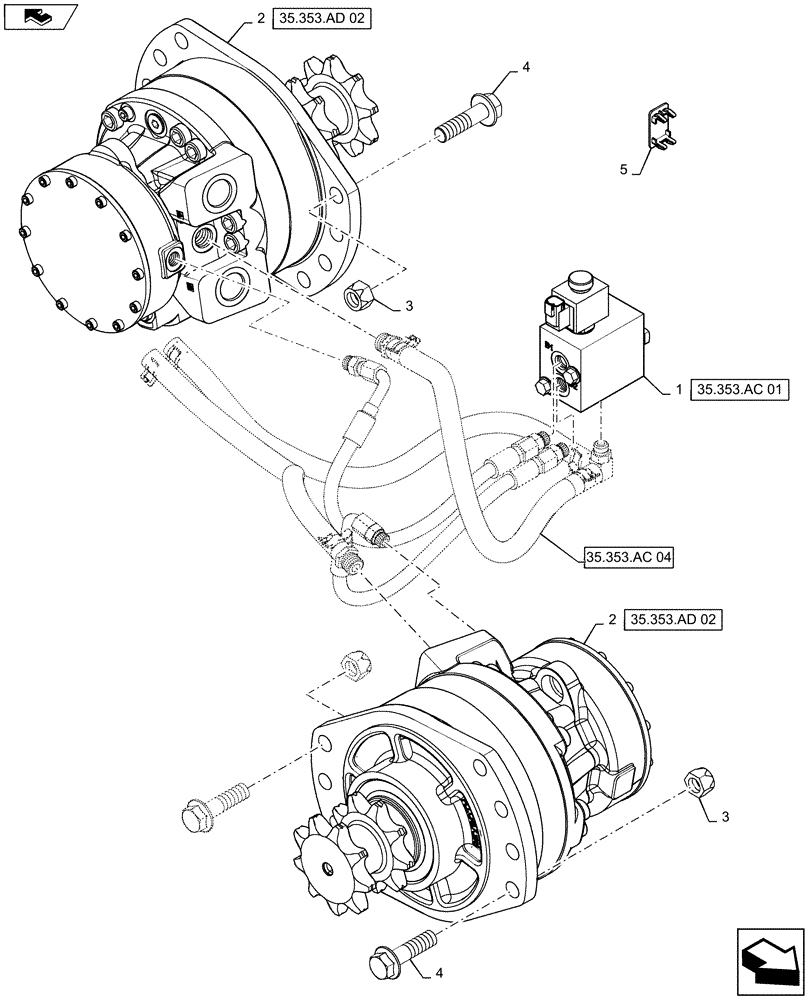

Схема запчастей Case SV250 - (35.353.AD[01]) - TRAVEL SPEED, 1 SPEED (35) - HYDRAULIC SYSTEMS
35.353.ad 02
5
35.353.ac 01
4
35.353.ad 02
2
3
3
35.353.ac 04
2
1
4

Артикул

Название

Примечание

Количество

1

84256530

BRAKE VALVE

1 Speed, Complete

1шт.

1

84256530

BRAKE VALVE

1 Speed, Complete

1шт.

See Figure 35.353.AC(01) For Service Parts

1шт.

See Figure 35.353.AC(01) For Service Parts

1шт.

2

84565751

HYDRAULIC MOTOR,Drive, 470 CC

1 Speed Drive Motor, 470cc, Complete

2шт.

2

84565751R

REMAN-HYD MOTOR

1 Speed Drive Motor, 470cc, Complete

2шт.

See Figure 35.353.AD(02) For Service Parts

1шт.

2

84565751C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

3

86512555

NUT,M16 x 2, Cl 10

12шт.

3

86512555

NUT,M16 x 2, Cl 10

12шт.

4

87675533

BOLT,M16 x 75.4mm, Cl 10.9

Hex, M16 - 2 x 60mm, Class 10.9, ZND

12шт.

4

87675533

BOLT,M16 x 75.4mm, Cl 10.9

Hex, M16 - 2 x 60mm, Class 10.9, ZND

12шт.

5

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole, Located In LH A-Post In Cab, Not Shown

1шт.

5

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole, Located In LH A-Post In Cab, Not Shown

1шт.

Выбрано товаров: 14
