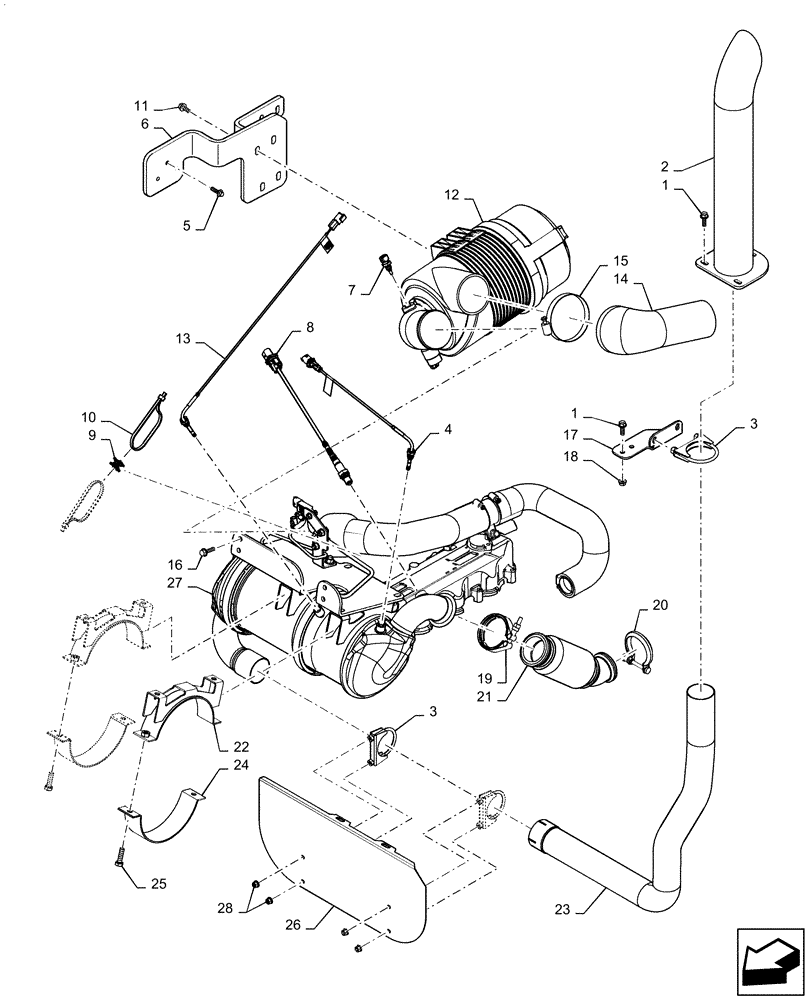

Запчасти Case SV250 (10.202.AD[01]) - AIR FILTER, LINES (10) - ENGINE

1

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

2

84495949

EXTENSION

Exhaust Stack

1шт.

3

87461995

CLAMP,68mm ID, Muffler

3шт.

4

84394768

SENSOR

Temperature

1шт.

5

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

6

84586138

BRACKET

Air Cleaner Mounting

1шт.

7

84539252

SENSOR

Air Temperature

1шт.

8

84286040

SENSOR

Lamda Uhego

1шт.

9

84318895

SPACER,17.97mm H

Swivel Tie Base

1шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

Hose

2шт.

11

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

12

84530899

AIR CLEANER

1шт.

For Breakdown See Figure 10.202.AB

1шт.

13

87482353

SENSOR

Temperature, Years: -31-JAN-12

1шт.

13

47428730

SENSOR

Temperature, Start Year: 01-FEB-13

1шт.

14

84531287

HOSE

Inlet Extension

1шт.

15

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.

16

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

17

84548462

MOUNT

Tailpipe Extension Hanger

1шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

19

A170467

CLAMP,72mm ID

Turbo

1шт.

20

84409146

PIPE CLAMP,63.5mm - 70mm

DPF

1шт.

21

84377118

TUBE

Exhaust System

1шт.

22

84280294

CLAMP

DPF

2шт.

23

84535644

EXHAUST SYSTEM PIPE

1шт.

24

84428318

CLAMP

Collar DPF

2шт.

25

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

26

47717789

BRACKET

Heat Shield

1шт.

27

84419021

MUFFLER

DOC DPF

1шт.

28

9823743

FLANGE NUT,Flg, 5/16"-18

Heat Shield Mounting

4шт.
