(90.100.BI[02]) - REAR HOOD ASSY

Запчасти Case SV250 (90.100.BI[02]) - REAR HOOD ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

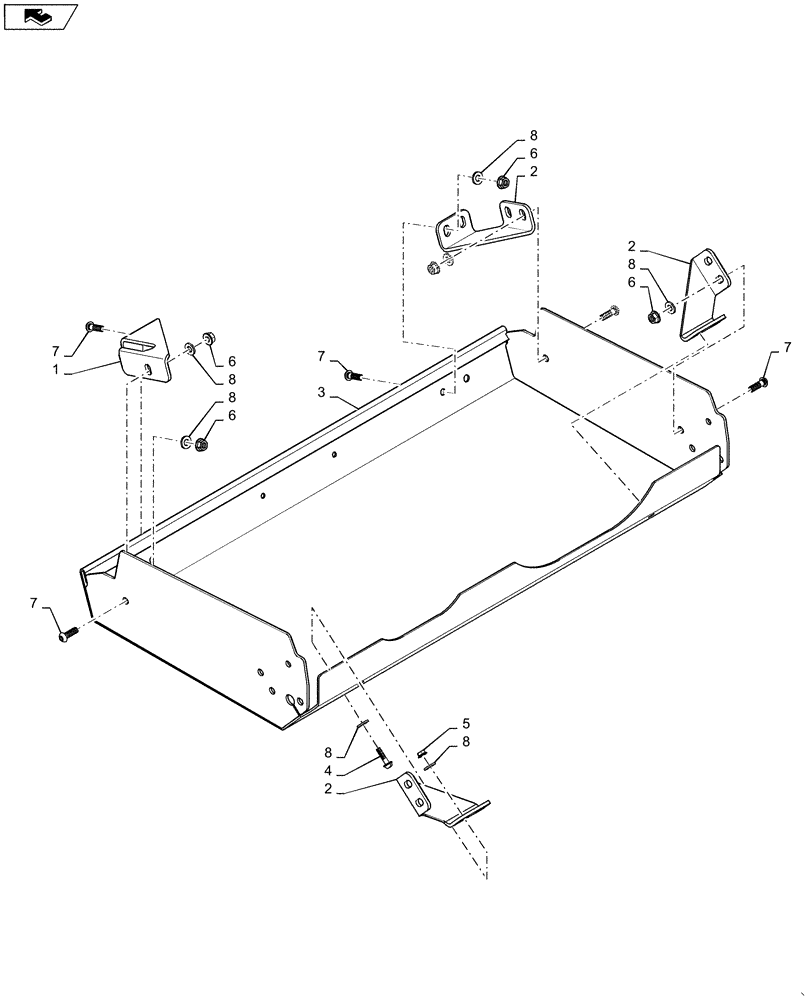

Схема запчастей Case SV250 - (90.100.BI[02]) - REAR HOOD ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
7
home
5
4
1
8
7
8
2
7
6
6
6
6
7
2
8
2
8
8
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47433444

PLATE

LH Gusset

1шт.

2

47433446

PLATE

RH Gusset

3шт.

3

47434328

HOOD

Tilt

1шт.

4

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

Torx, M6 x 25mm, Class 10.9, ZND

4шт.

5

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

6

86619801

FLANGE NUT,M8 x 1.25, Cl 8

8шт.

7

87028323

HEX SOC SCREW,Btn Head, M8 x 1.25 x 25mm, Cl 8.8

8шт.

8

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

M8, 8.8mm x 17.5mm x 2.2mm, HTS, BORON, ZND

16шт.
