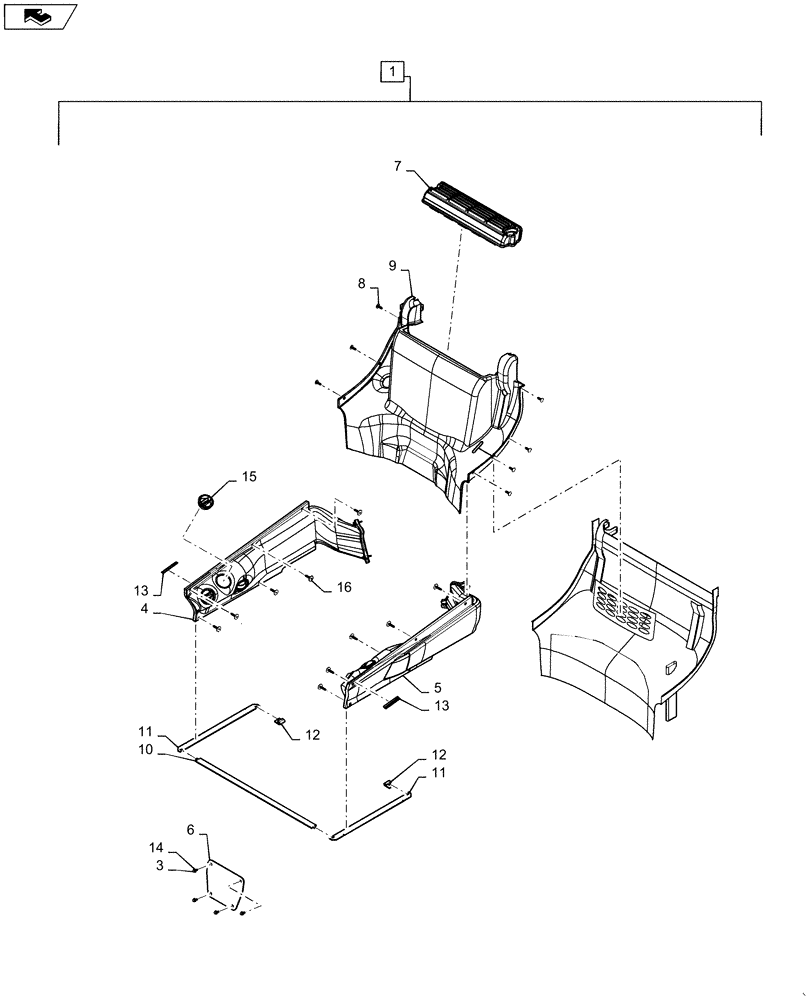

Запчасти Case SV250 (88.090.07) - DIA KIT, INTERIOR TRIM CASE (88) - ACCESSORIES

1

84559081

SERVICE KIT

Interior Trim Case, Incl 2 - 16

1шт.

2

84559092

INSTRUCTION

Sheet, Heat / HVAC Trim Kit, Not Shown

1шт.

3

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

4шт.

4

84299751

AIR DUCT

RH, Wheat

1шт.

5

84299754

AIR DUCT

RH, Wheat

1шт.

6

84322838

PLATE

Cover, Tan

1шт.

7

84322854

FOAM INSULATION,684mm L x 6mm W x 3mm Thk

Strip, Sealing

684шт.

8

84380551

FASTENER

Pine Tree, Wheat

7шт.

9

84389708

PANEL

Rear Trim, Case, Tan

1шт.

10

84411489

FOAM INSULATION

Center, Upper Chassis

1шт.

11

84416163

FOAM INSULATION

RH, Upper Chassis

2шт.

12

84416164

FOAM INSULATION

RH, Upper Chassis

2шт.

13

84469613

TRIM,Bulk 300 FT

Flare

1580шт.

14

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

4шт.

15

87669161

VENT

Louver, Global

6шт.

16

348452A1

FASTENER,Push-In, 37mm L, Nylon

XMAS Tree 1in Grip

10шт.
