Запчасти Case SV250 (88.090.01) - DIA KIT, 3 POINT SEAT BELT (88) - ACCESSORIES

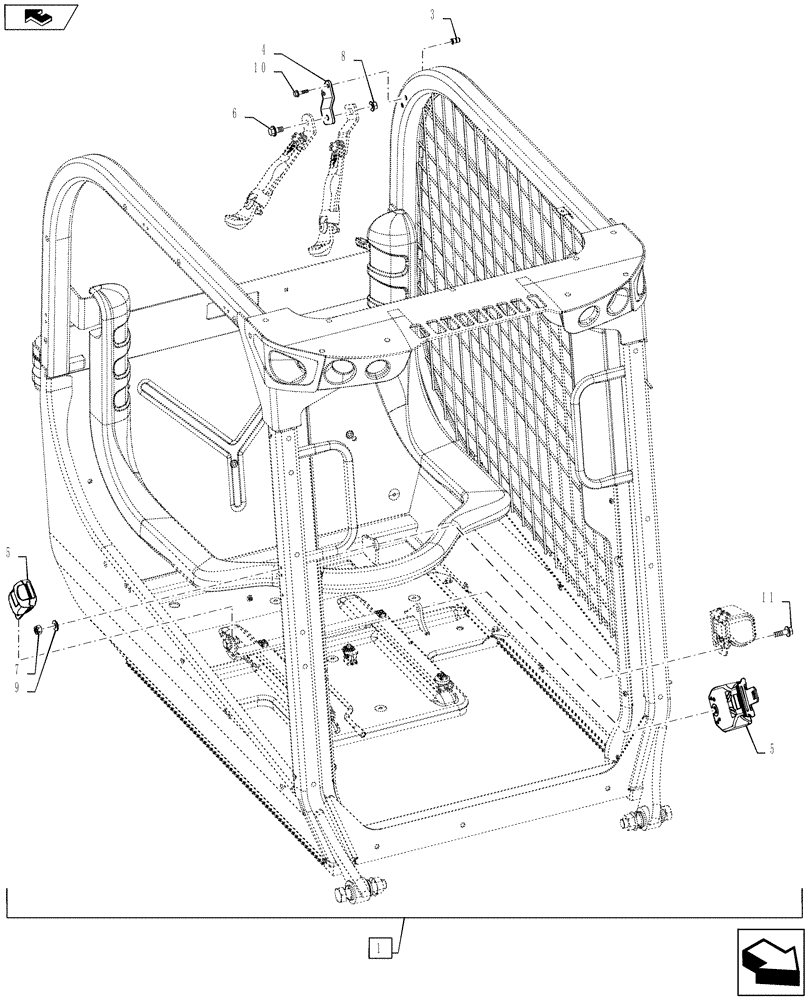

Схема запчастей Case SV250 - (88.090.01) - DIA KIT, 3 POINT SEAT BELT (88) - ACCESSORIES
5
5
9
home
10
7
6
1
8
4
3
11

Артикул

Название

Примечание

Количество

1

84563045

SERVICE KIT

3 Point Seat Belt, Incl 2 - 11

1шт.

2

84563047

INSTRUCTION

Installation, 3 Point Seat Belt

1шт.

3

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

Nut, M6 - 1, Hex Hole

2шт.

4

84291791

BRACKET

3 Point Retractable Seat Belt

1шт.

5

84354487

SEAT BELT

3 Point, Case

1шт.

6

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

7

86512554

NUT,M10 x 1.5, Cl 10

1шт.

8

86619802

FLANGE NUT,M10 x 1.5, Cl 8

Hex, M10 - 1.5, Class 8.8, ZND

1шт.

9

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10, 10.65mm x 23.0mm x 2.2mm, HTS, BORON, ZND

1шт.

10

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

11

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

Выбрано товаров: 11
