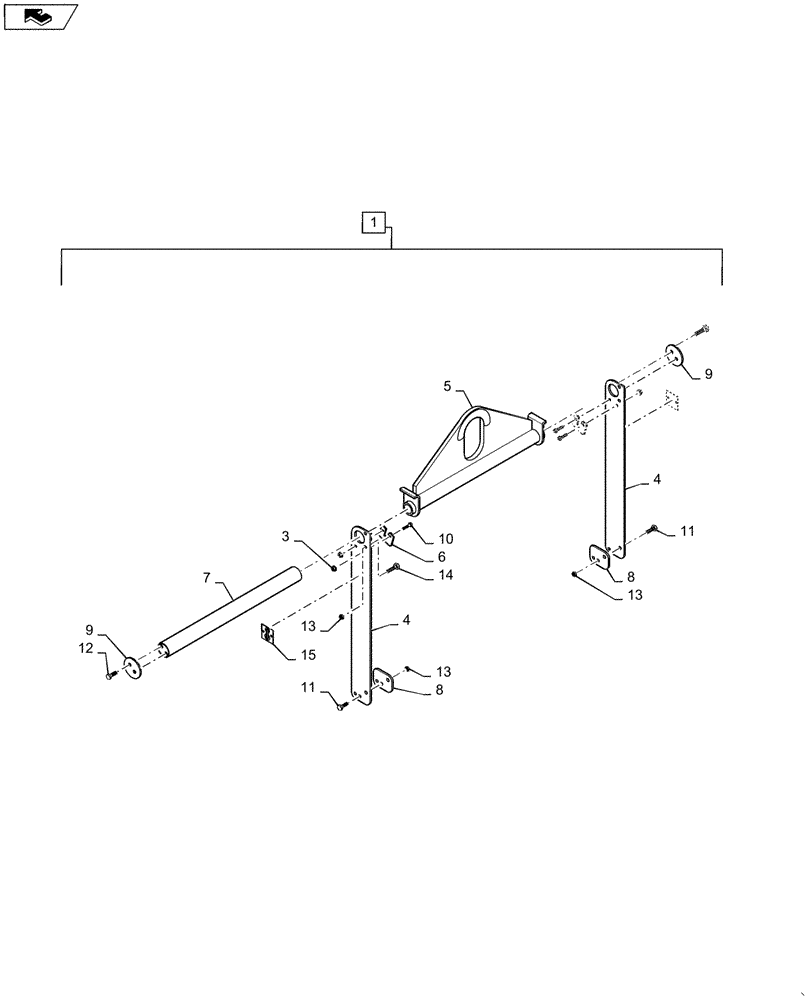

Запчасти Case SV250 (88.088.02) - DIA KIT, SINGLE POINT LIFT HOOK, RADIAL BOOM (88) - ACCESSORIES

1

84419922

KIT

Single Point Loader Arm Radial, Incl 2 - 15

1шт.

2

84475175

INSTRUCTION

Single Point Loader Arm Radial, Not Shown

1шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

Flange

4шт.

4

84362345

PLATE

LH, Lift Strap CE Gray

2шт.

5

84362347

CARRIER

Single Point Gray

1шт.

6

84388634

SPACER

Spacer, Nylatron Block

2шт.

7

84408941

PIN

CE Gray

1шт.

8

84409145

PLATE

Spacer

2шт.

9

47569648

CAP

Cover, CE Gray

2шт.

10

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

4шт.

11

87301277

BOLT,M12 x 71.8mm, Cl 10.9

Flange

6шт.

12

87564735

BOLT,Hex Flg, M10 x 35mm, Cl 10.9, Full Thd

4шт.

13

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

Prevailing Torque

8шт.

14

87698845

BOLT,M12 x 70, Cl 10.9

Flange

2шт.

15

139729A1

DECAL

2шт.
