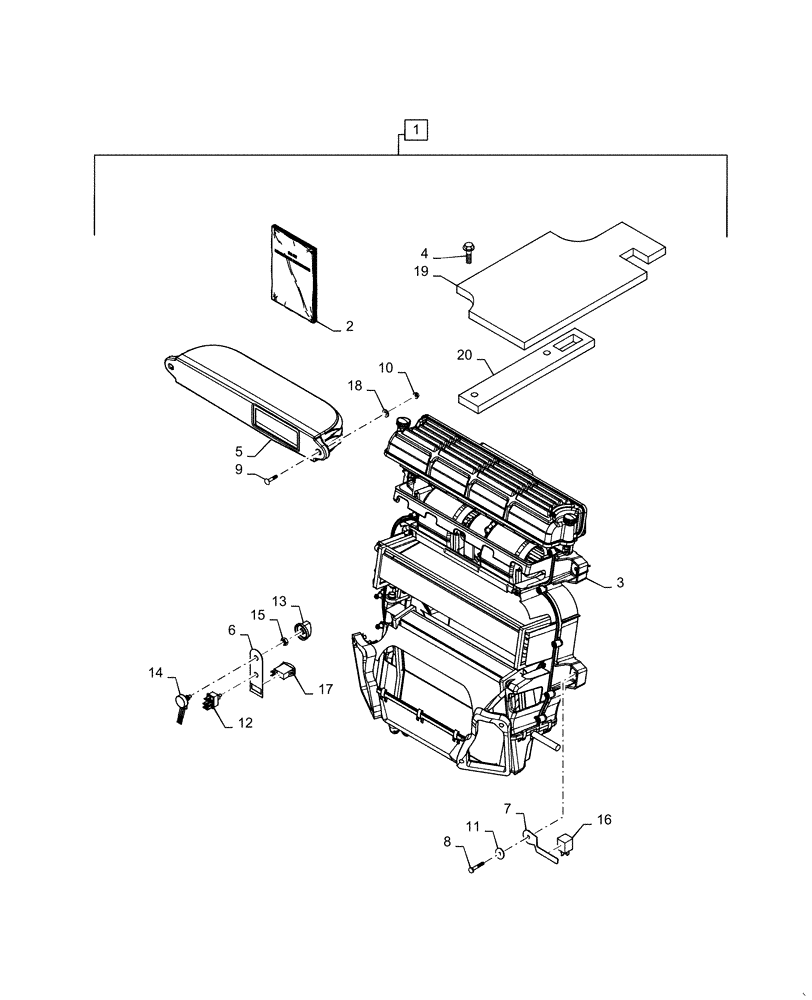

Запчасти Case SV250 (88.050.01) - DIA KIT, LARGE FRAME HVAC (88) - ACCESSORIES

1

84559084

KIT

DIA, LRG FRM HVAC, Incl 2 - 20

1шт.

2

84559094

INSTRUCTION

Installation

1шт.

3

84267544

UNIT HEATER

With A/C

1шт.

4

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

4шт.

5

84280313

AIR DUCT

External

1шт.

6

84347258

DECAL

HVAC Decal Heat/A/C

1шт.

7

84380240

BRACKET

Relay

1шт.

8

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

9

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

10

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

11

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

14

86729669

SWITCH

Blower

1шт.

12

86729670

KNOB

2шт.

13

86729675

SWITCH,5000 Ohm

Switch

1шт.

15

87310592

JAM NUT,7/16" - 28, Gr 5

Water Valve and Dryer

2шт.

16

87355337

RELAY,12V, 45A

Heavey Duty

1шт.

17

87555249

SWITCH

A/C

1шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

19

84362126

FOAM INSULATION

Roof, Foam

1шт.

20

84370302

FOAM INSULATION

Foam, HVAC Box

1шт.
