(88.037.01) - DIA KIT, DRAWBAR ATTACHMENT

Запчасти Case SV250 (88.037.01) - DIA KIT, DRAWBAR ATTACHMENT (88) - ACCESSORIES

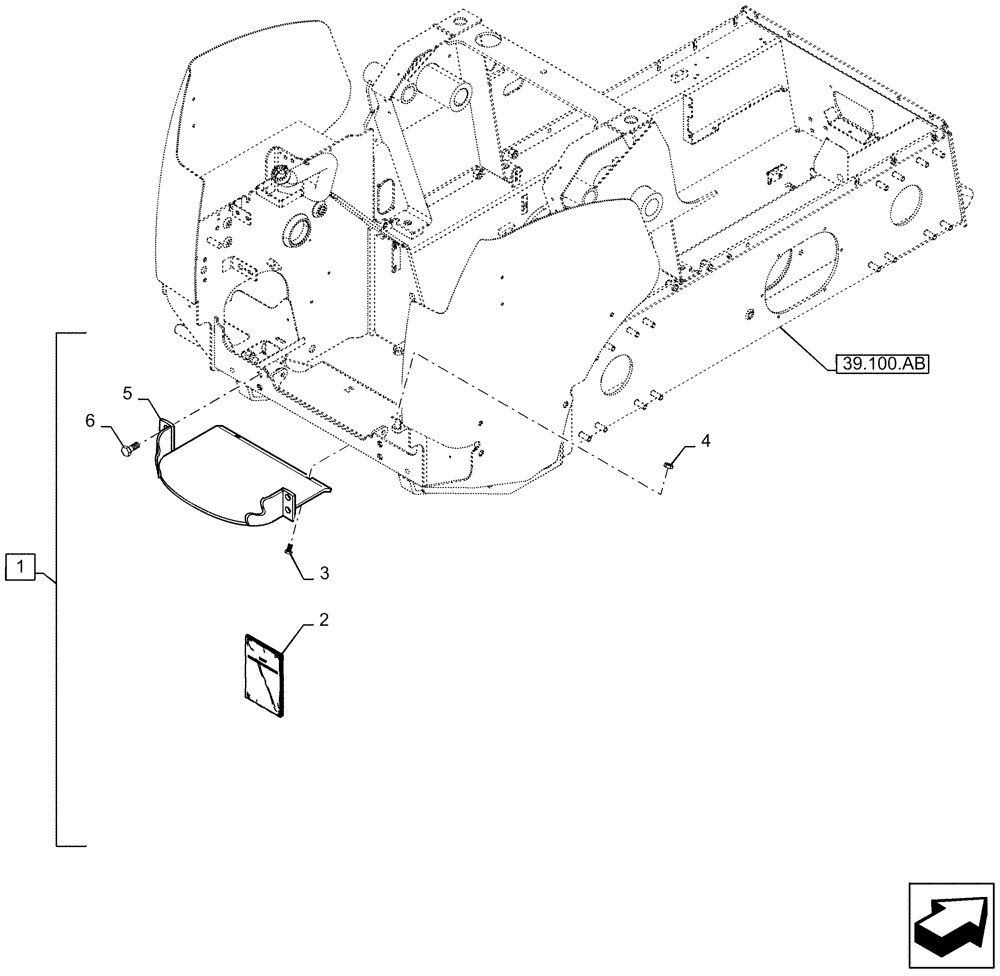

Схема запчастей Case SV250 - (88.037.01) - DIA KIT, DRAWBAR ATTACHMENT (88) - ACCESSORIES
39.100.ab
1
5
4
2
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84373391

KIT

Drawbar Attachment, Incl 2 - 6

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84373858

INSTRUCTION

Sheet

1шт.

3

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

4

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

5

84372075

HANGER

Bracket

1шт.

6

87015923

BOLT,M16 x 125.4mm, Cl 10.9

4шт.
