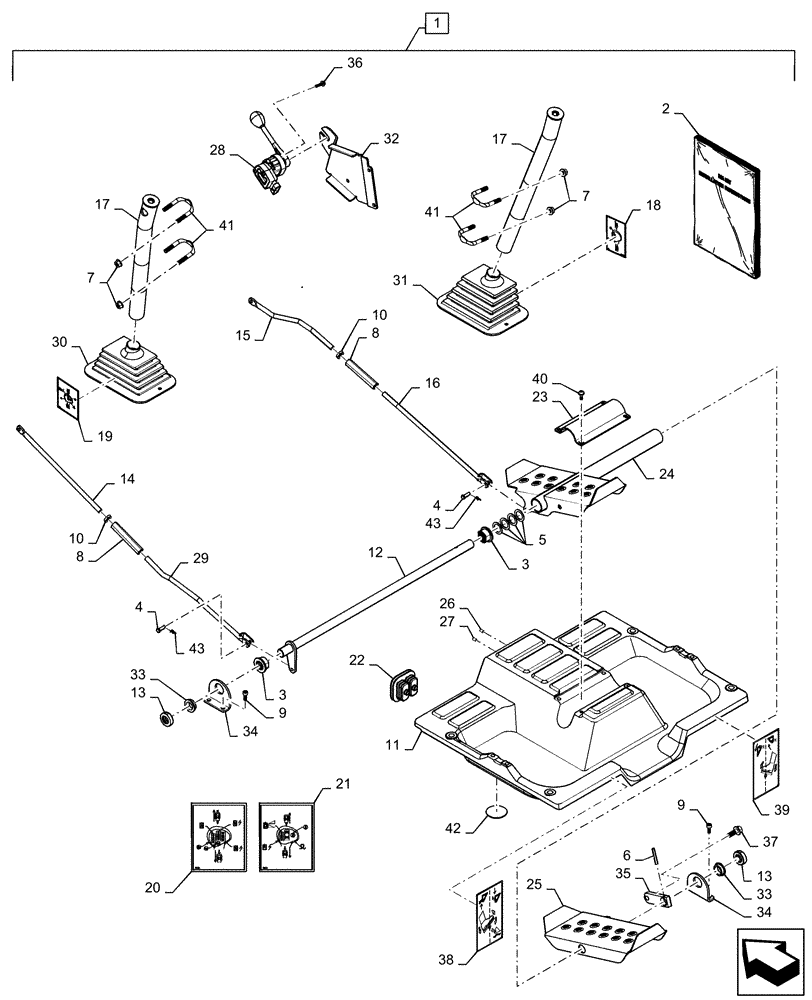

Запчасти Case SV250 (88.035.05) - DIA KIT, FOOT CONTROLS, SERVO (88) - ACCESSORIES

1

47402669

KIT

DIA, Foot Controls, Servo, Incl 2 - 43

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

47397817

INSTRUCTION

Installation, Foot Controls

1шт.

3

228500

BUSHING,19.07mm ID x 24.69mm OD x 15.88mm L

2шт.

4

234726

CLEVIS PIN,6.29mm OD x 20mm L

2шт.

5

600083

WASHER,19.3mm ID x 28.7mm OD x 1.36mm Thk

4шт.

6

856800

GROOVED PIN,4.76mm OD x 38.1mm L

1шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

8

10090811

NUT,M10 x 1.25 x 90mm, Cl R50

2шт.

9

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

4шт.

10

83980600

THIN NUT,M10 x 1.25, Cl 8

2шт.

11

84201059

PLATE

Floor, Pedal

1шт.

12

84201070

SHAFT,19.06mm OD x 557.8mm L

Pedal

1шт.

13

84291866

RETAINER COLLAR,19.05mm ID x 31.75mm OD x 9.53mm W, Incl Set Screw

3/4 Shaft

2шт.

14

84317959

ROD,M10 x 1.25 x 278mm L

Valve Lift

1шт.

15

84317960

ROD,M10 x 1.25 x 233.3mm L

Valve Tip

1шт.

16

84317963

ROD,M10 x 1.25 x 339mm L

Foot Control, LH Thread

1шт.

17

84349081

TUBE

Foot Control Handle, CE Gray

2шт.

18

84353734

DECAL

Case Level 100 LH

1шт.

19

84353738

DECAL

Case Level 100 RH

1шт.

20

84353741

DECAL

Case Level 200 LH

1шт.

21

84353742

DECAL

Case Level 200 RH

1шт.

22

84355747

BOOT

Foot Controls

1шт.

23

84373687

PLATE

Control Pedal Cover, Gray

1шт.

24

84383330

PEDAL

RH, CE Gray

1шт.

25

84383720

PEDAL

LH, CE Gray

1шт.

26

84386279

KIT

Foot Bucket Spring

1шт.

27

84386280

KIT

Foot Boom Spring

1шт.

28

84408228

HANDLE

Electronic

1шт.

29

84410639

ROD

Foot Control, LH Thread

1шт.

30

84531450

BOOT

RH, Control Handle, Round

1шт.

31

84531817

BOOT

LH, Control Handle, Round

1шт.

32

84550528

MOUNT

Hand Throttle, CE Gray

1шт.

33

84553555

BUSHING,19.25mm ID x 25.63mm OD x 8mm L

Foot Control, Pivot

2шт.

34

84555971

BRACKET

Foot Control

2шт.

35

84561938

PLATE

Foot Controler

1шт.

36

86050284

BOLT,Hex Serr Flg, M5 x 20mm, Full Thd

2шт.

37

87343114

BOLT,0.375" - 16 x 1", Full Thd, Gr 5

1шт.

38

87586484

DECAL

Foot Controls, LH

1шт.

39

87586485

DECAL

Foot Controls, RH

1шт.

40

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

4шт.

41

294901A1

U-BOLT,M8 x 1.25, Coined

4шт.

42

414635A1

COVER,25.4mm OD x 0.51mm Thk

Lexan Gray

1шт.

43

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

Ring

2шт.
