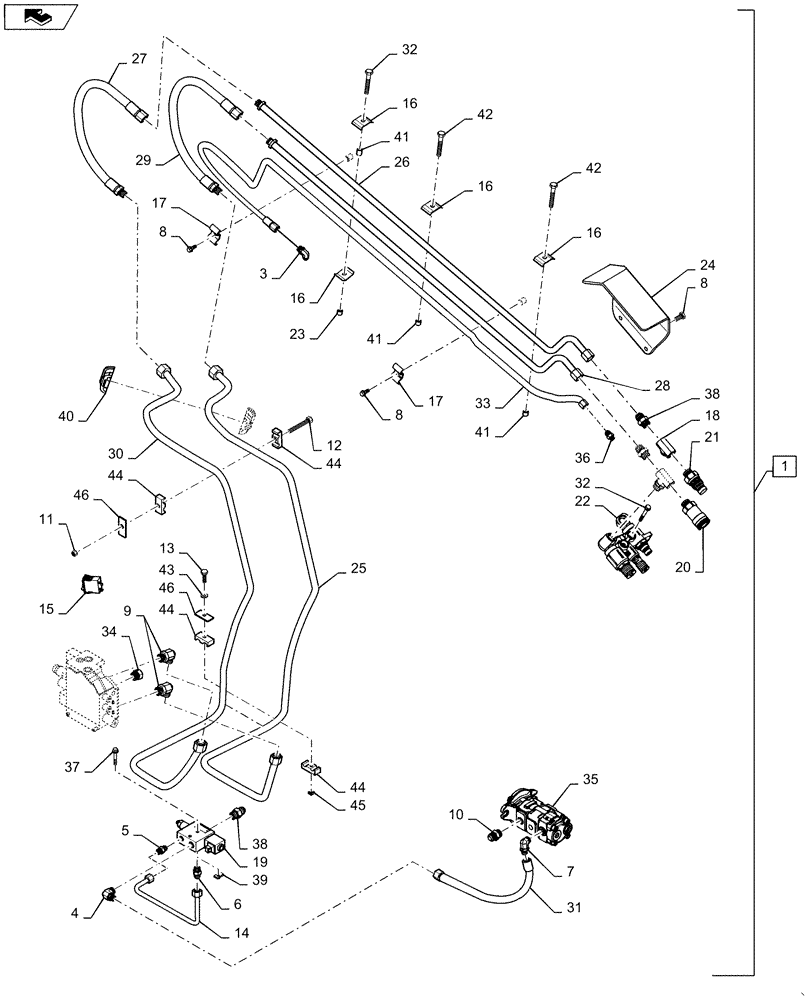

Запчасти Case SV250 (88.035.04) - DIA KIT, HIGH FLOW AUXILIARY, LG VERT (88) - ACCESSORIES

1

84586190

SERVICE KIT

High Flow Auxiliary, Incl 2 - 46

1шт.

2

84594099

INSTRUCTION

Sheet, High Flow Auxiliary, Not Shown

1шт.

3

76352

90 ELBOW,3/4" - 16 JIC x 1/2" - 14 NPTF

Male - 08

1шт.

4

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

5

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

6

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

7

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

8

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

9

286217

90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

10

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

12

9811147

CARRIAGE BOLT,Sq Nk, M8 x 100mm, Cl 8.8

1шт.

13

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

14

84186155

TUBE

High Flow Valve to Loader Valve

1шт.

15

84251427

SWITCH

1шт.

16

84254045

CLAMP,66mm L

4шт.

17

84254056

HOSE CLAMP,69.2mm L

Butterfly Tube

2шт.

18

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

Union Tee

2шт.

19

84256405

HYDRAULIC VALVE

High Flow Combiner

1шт.

20

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Female Quick Coupler

1шт.

21

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Male Quick Coupler

1шт.

22

84259689

VALVE

Quick Attach, High Flow

1шт.

23

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

24

84306937

COVER PLATE

Hydraulic Tan

1шт.

25

84322565

HYD TUBE

Auxiliary High Flow, Loader Valve to Lifting Arm

1шт.

26

84322579

HYD TUBE

Highflow Male

1шт.

27

84322581

FLEXIBLE HOSE,19.05mm ID x 849mm L, SAE 100R17

Highflow Auxiliary

1шт.

28

84322582

HYD TUBE

Highflow Female

1шт.

29

84322584

FLEXIBLE HOSE,19.05mm ID x 924mm L, SAE 100R17

Highflow Auxiliary

1шт.

30

84323950

HYD TUBE

Auxiliary High Flow, Loader Valve to Lifting Arm

1шт.

31

84329004

HOSE,15.88mm ID x 586mm L, SAE 100R17

High Flow Supply

1шт.

32

84331287

SCREW,HWH, 3/8" - 16 x 3"

Tapping

3шт.

33

84338474

HYD TUBE

Case Drain

1шт.

34

84373460

PLUG,23.8mm OD

Load Check

1шт.

35

84572270

PUMP,36.6 CC

Hydraulic

1шт.

36

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

37

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

38

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

3шт.

39

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

40

87017999

SUPPORT

Hydraulic Tube

2шт.

41

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

3шт.

42

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

Tapping

2шт.

43

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

44

225529A1

CLAMP,Dual, 25.4mm ID

Clamp, Tube

2шт.

45

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

46

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar, Clamp Top

2шт.
