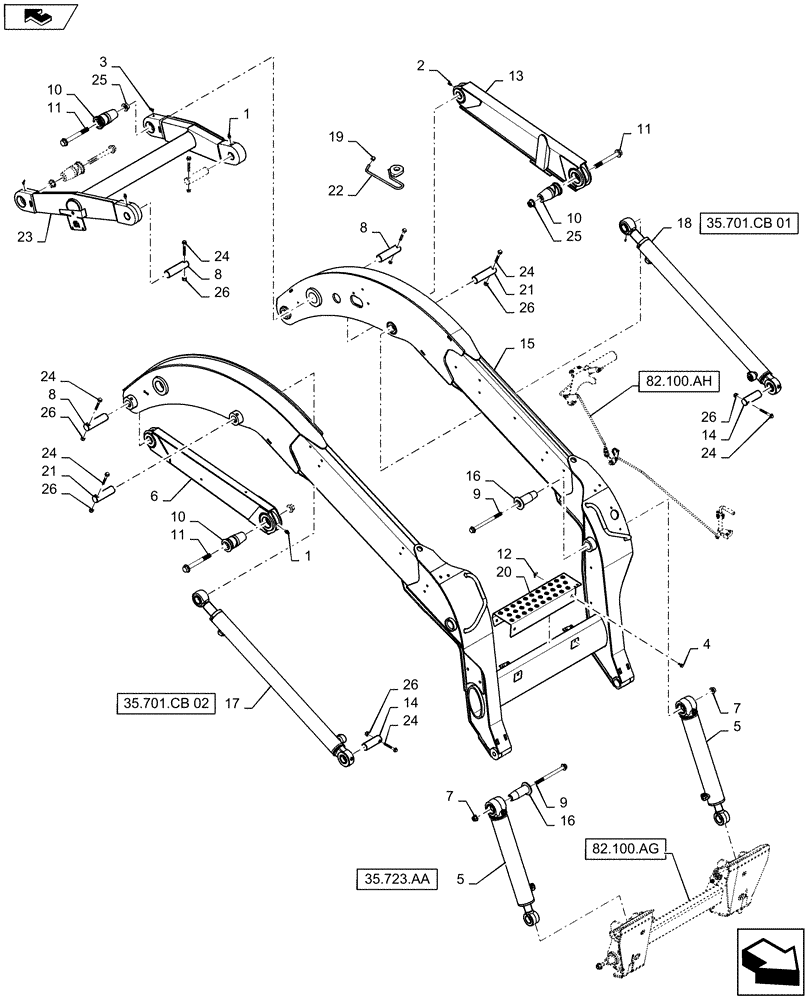

Запчасти Case SV250 (84.910.AA) - BOOM (84) - BOOMS, DIPPERS & BUCKETS

1

87414

LUBE NIPPLE,1/4" - 28

4шт.

2

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

3

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

47364444

HYDRAULIC CYLINDER,38.1mm Rod, 410mm Stroke

Bucket, 76.2 x 38.1

2шт.

47364444R

LIFT CYLINDER

SV250 TIER 4 (1/13-)

2шт.

47364444C

LIFT CYLINDER

Return Number

1шт.

6

47372604

CONNECTING LINK

RH Lower

1шт.

7

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

8

84201510

PIN,38.15mm OD x 146mm L

Boom To Lift Cylinder

4шт.

9

84238749

BOLT,Hex Flg, M16 x 210mm, Cl 10.9

2шт.

10

84239550

PIN,60.32mm OD x 126.5mm L

Boom To Links

4шт.

11

84246761

FLANGE BOLT,Hvy Hex, M20 x 170mm, Cl 10.9

Hex, M16 - 2 x 170mm, Class 10.9, ZND

4шт.

12

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

13

84270979

LIFT LINK

LH Lower

1шт.

14

84280377

PIN,38.15mm OD x 98mm L

Chassis To Boom Lift Cylinder

2шт.

15

48007306

KIT

Vertical Boom Arm, Tan

1шт.

16

84319704

PIN,50mm OD x 111mm L

Boom To Bucket Cylinder

2шт.

16

47489943

PIN,44.45mm OD x 118.5mm L

Boom To Bucket Cylinder, Start Year: 31-JUL-13

2шт.

17

84494544

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 891.5mm Stroke

Boom Lift, RH, 63.5mm x 44.4mm

1шт.

18

84494545

CYLINDER,Double Acting, 44.4mm Rod, 891.5mm Stroke

Boom Lift, LH, 63.5mm x 44.4mm

1шт.

19

84366057

CAP,7.92mm ID x 10.66mm OD x 12.7mm L

Vinyl

2шт.

20

84377147

STEP

Loader

1шт.

21

84423056

PIN,38.15mm OD x 133.3mm L

Boom To Lift Cylinder

2шт.

22

84519586

GUIDE

Hose Loop

2шт.

23

84593067

LINK

H Pattern

1шт.

23

47502239

LINK

, Start Year: 31-JUL-13

1шт.

24

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

8шт.

25

86512499

FLANGE NUT,M20 x 2.5, Cl 10

4шт.

26

86512554

NUT,M10 x 1.5, Cl 10

8шт.

27

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

Base End of Tip Cyl, Not Illustrated, Start Year: 31-JUL-13

2шт.
