Запчасти Case SV250 (50.100.AP[03]) - HVAC LARGE FRAME (50) - CAB CLIMATE CONTROL

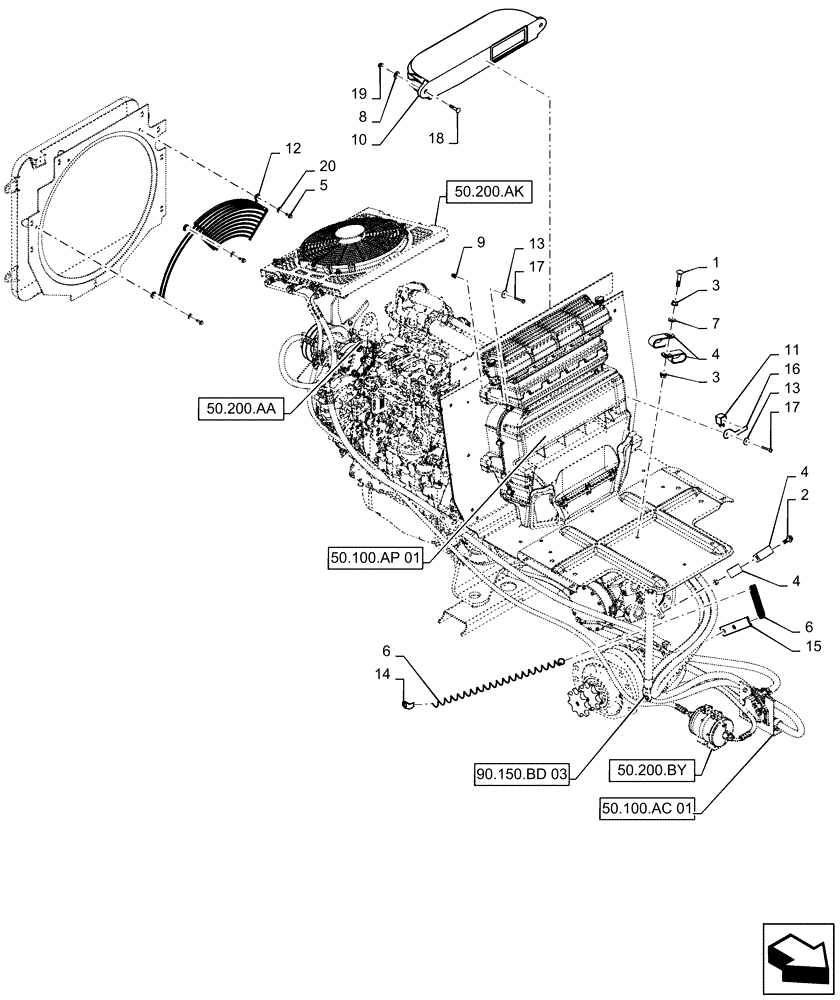

Схема запчастей Case SV250 - (50.100.AP[03]) - HVAC LARGE FRAME (50) - CAB CLIMATE CONTROL
11
5
9
6
3
13
18
13
3
20
14
10
7
19
2
4
4
50.200.ak
90.150.bd 03
50.200.by
50.100.ap 01
50.100.ac 01
12
16
6
17
4
15
17
1
8
50.200.aa

Артикул

Название

Примечание

Количество

1

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

1шт.

2

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

3

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

4

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

4шт.

5

84137412

SCREW,Hex Flng, M6 x 18mm

M6 x 1.0

3шт.

6

412679A2

SPRING,Extension, 22.5mm OD x 173mm L

Extension

2шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

8

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

9

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

4шт.

10

84280313

AIR DUCT

External

1шт.

11

87355337

RELAY,12V, 45A

45 AMP

1шт.

12

84335904

GUARD

Fan

1шт.

13

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

3шт.

14

84361522

BRACKET

L Bracket, Two Hole

1шт.

15

84370705

BRACKET

147mm OAL

1шт.

16

84380240

BRACKET

Relay

1шт.

17

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

18

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

19

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

20

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

Выбрано товаров: 20
