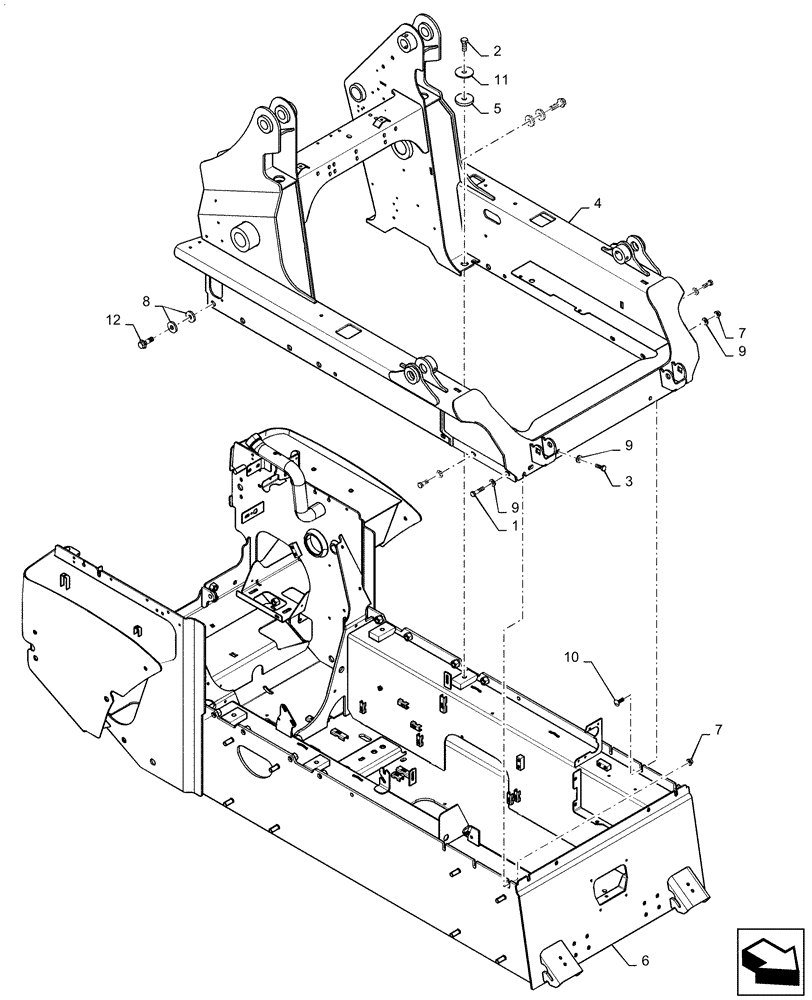

Запчасти Case SV250 (39.100.AB) - CHASSIS (39) - FRAMES AND BALLASTING

1

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

2

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

3

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

Rear Mount

8шт.

4

84532255

FRAME

Upper Chassis, Vertical Boom

1шт.

4

47460809

FRAME

Upper Chassis, Vertical Boom, Start Year: 28-JAN-14

1шт.

5

84298254

PLATE

Rear Mount

1шт.

6

NS

NOT SERVICED

The Lower Chassis Is Not Offered As A Service Part, Please Contact Your Local PSSM If Lower Chassis Is Needed

1шт.

7

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

8

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

16шт.

9

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

10шт.

10

87035385

CARRIAGE BOLT,Sht Sq Nk, M12 x 35mm, Cl 8.8, Full Thd

1шт.

11

87687021

WASHER,17.3mm ID x 70mm OD x 4.5mm Thk

4шт.

12

87698849

BOLT,M16 x 50mm, Cl 10.9

8шт.
