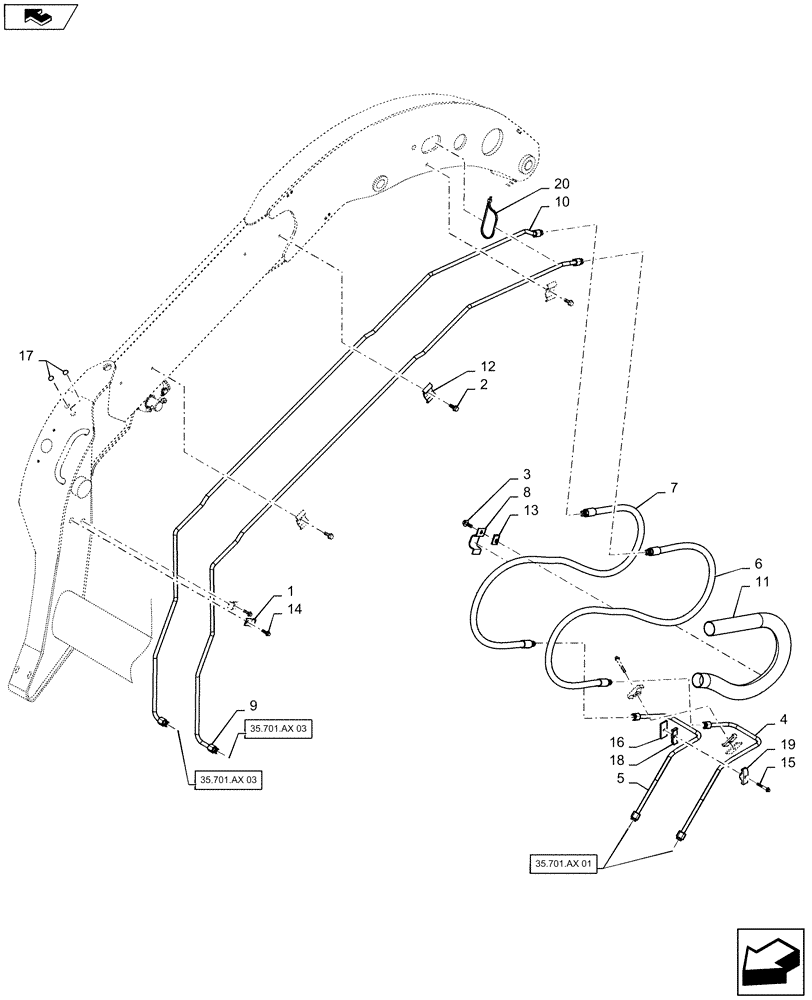

Запчасти Case SV250 (35.701.AX[02]) - BUCKET TIP LINES (35) - HYDRAULIC SYSTEMS

1

184064

CLIP,12.7mm ID, 8.73mm Bolt Hole, J Type

Single Tube

2шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

3

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

4

84179316

TUBE

Bucket Tip, RH Tower

1шт.

5

84179318

TUBE

Bucket Tip, RH Tower

1шт.

6

84281692

HYDRAULIC HOSE,12.7mm ID x 1825mm L, SAE 100R17

Bucket Tip, RH Loader Arm

1шт.

7

84281693

HYDRAULIC HOSE,12.7mm ID x 1850mm L, SAE 100R16

Bucket Tip, RH Loader Arm

1шт.

8

84318865

HOSE CLAMP

Double

1шт.

9

84346623

HYD TUBE

Bucket Tip, RH Loader Arm

1шт.

10

84346625

HYD TUBE

Bucket Tip, RH Loader Arm

1шт.

11

84362109

HOSE PROTECTION,46mm ID x 50mm OD x 1070mm L

Hose

1шт.

12

86501706

CLAMP

Double Tube

3шт.

13

86625071

SPRING NUT,M10 x 1.5

Crossover, Bucket Cylinder

1шт.

14

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

Loader Arm

2шт.

15

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

2шт.

16

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Clamp, Top

2шт.

17

414635A1

COVER,25.4mm OD x 0.51mm Thk

2шт.

18

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

2шт.

19

D120679

CLAMP,Tube, 1/2"

2шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

15" Nylon

1шт.
