Запчасти Case SV250 (35.525.AA[04]) - AUXILIARY BOOM ARM PLUMBING, HIGH FLOW (35) - HYDRAULIC SYSTEMS

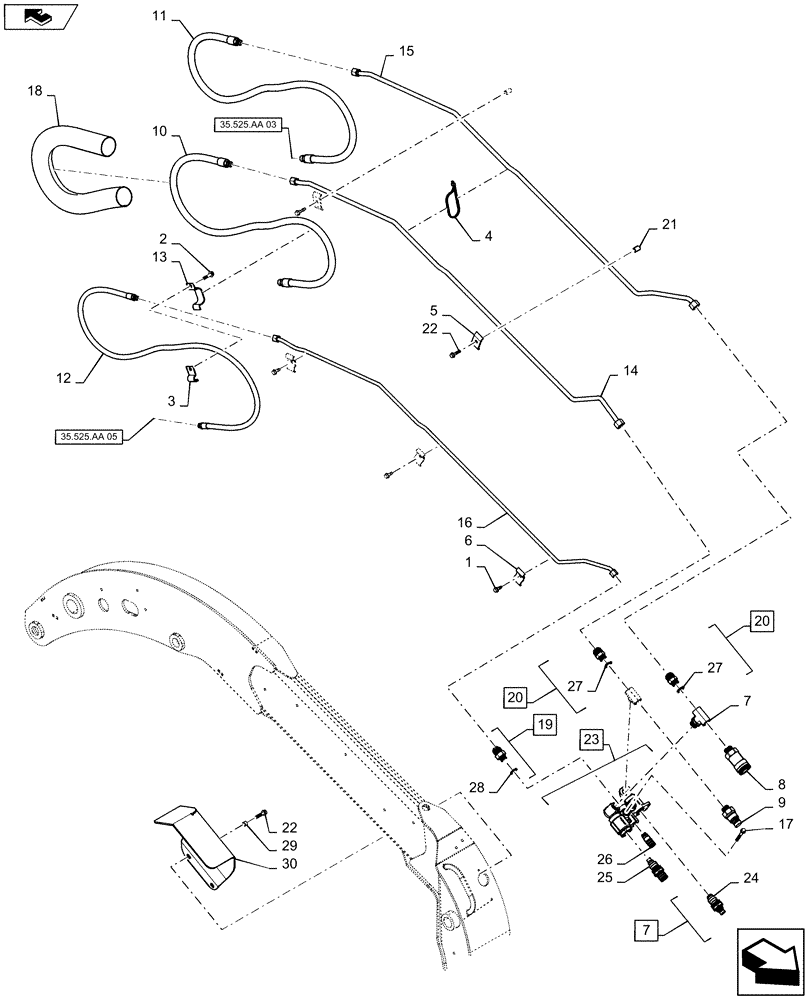

Схема запчастей Case SV250 - (35.525.AA[04]) - AUXILIARY BOOM ARM PLUMBING, HIGH FLOW (35) - HYDRAULIC SYSTEMS
10
19
11
26
35.525.aa 03
21
3
28
12
23
6
27
7
25
20
16
14
22
35.525.aa 05
13
1
5
29
24
30
2
20
27
22
4
18
home
9
17
15
8
7

Артикул

Название

Примечание

Количество

1

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

2

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

3

47374617

CLAMP,18mm ID, 12.5mm Bolt Hole, J Type

Single Hose

1шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

15" Nylon

1шт.

5

84254045

CLAMP,66mm L

Tube

2шт.

6

84254056

HOSE CLAMP,69.2mm L

Butterfly

3шт.

7

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

2шт.

8

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

5/8" Female Quick Coupler

1шт.

9

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

5/8" Male Quick Coupler

1шт.

10

84281606

FLEXIBLE HOSE,19.05mm ID x 1835mm L, SAE 100R17

High Flow, LH Tower To Loader Arm

1шт.

11

84281607

FLEXIBLE HOSE,19.05mm ID x 1875mm L, SAE 100R17

High Flow, LH Tower To Loader Arm

1шт.

12

84281611

FLEXIBLE HOSE,10mm ID x 2085mm L, SAE 100R17

High Flow, Case Drain

1шт.

13

84282424

HOSE CLAMP

Double

1шт.

14

84297610

RIGID TUBE

High Flow, Loader Arm, Female Couplers

1шт.

15

84297613

RIGID TUBE

High Flow, Loader Arm, Male Couplers

1шт.

16

84297619

RIGID TUBE

High Flow, Case Drain

1шт.

17

84331287

SCREW,HWH, 3/8" - 16 x 3"

2шт.

18

84362111

GUARD,85mm ID x 90mm OD x 1070mm L

Hose

1шт.

19

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 28

1шт.

20

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 27

2шт.

21

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

2шт.

22

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

4шт.

23

84259689

VALVE

High Flow Connect Under Pressure Manifold, Incl 24 - 26, Years: -15-FEB-13

1шт.

23

47447054

VALVE

High Flow Connect Under Pressure Manifold, Incl 24 - 26, Start Year: 15-FEB-13

1шт.

24

84390117

COUPLING

1/2" Male, Years: -15-FEB-13

1шт.

24

47396760

COUPLING,1/2" Male

1/2" Male, Start Year: 15-FEB-13

1шт.

25

84390118

COUPLING

1/2" Female, Years: -15-FEB-13

1шт.

25

47396761

COUPLING,1/2" Female

1/2" Female, Start Year: 15-FEB-13

1шт.

26

84390119

COUPLING

3/8" Female, Years: -15-FEB-13

1шт.

26

47396762

COUPLING,3/8" Female

3/8" Female, Start Year: 15-FEB-13

1шт.

27

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

28

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

30

84306937

COVER PLATE

Hydraulic Coupler, Tan

1шт.

Выбрано товаров: 34
