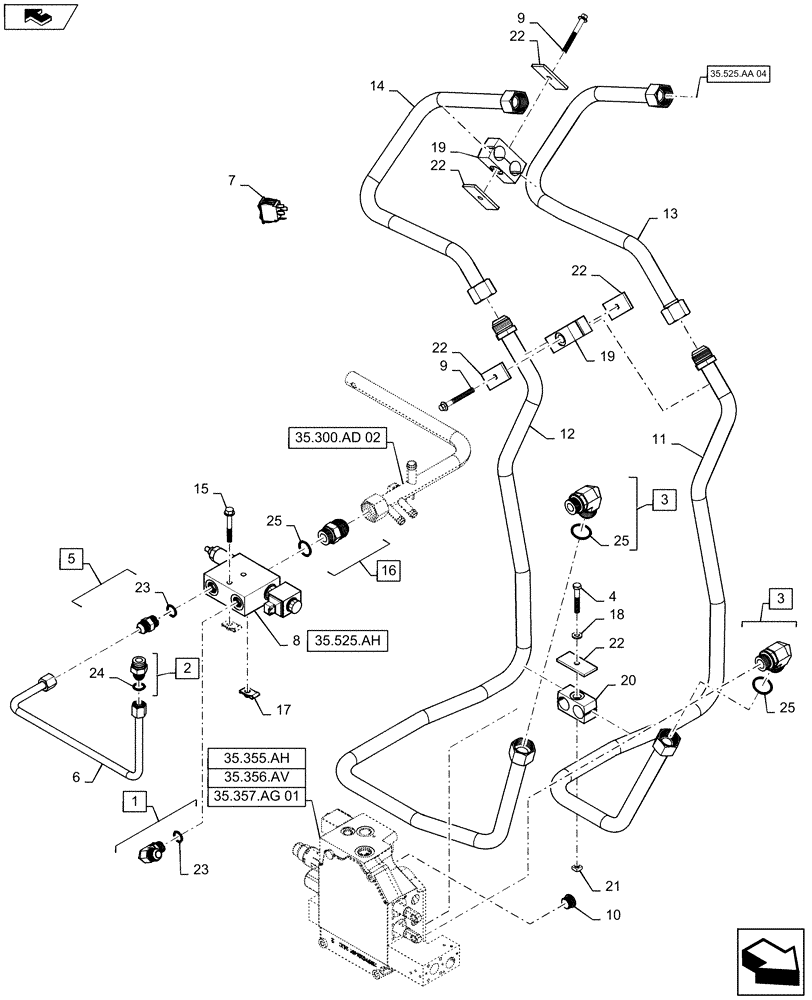

Запчасти Case SV250 (35.525.AA[03]) - AUXILIARY CHASSIS PLUMBING, HIGH FLOW (35) - HYDRAULIC SYSTEMS

1

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 23

1шт.

2

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 24

1шт.

3

286217

90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 25

2шт.

4

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

5

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

6

84186155

TUBE

High Flow Valve To Loader Valve, Years: -05-JAN-16

1шт.

6

47900681

HYD TUBE

High Flow Valve to Loader Valve, Start Year: 06-JAN-15

1шт.

7

84251427

SWITCH

High Flow, Located In Cab

1шт.

8

84256405

HYDRAULIC VALVE

High Flow Valve

1шт.

9

84323488

SELF-TAP SCREW,Hex Flg, M8 x 70mm

2шт.

10

84373460

PLUG,23.8mm OD

Load Check

1шт.

11

84377512

TUBE

Auxiliary, High Flow, Loader Valve To LH Tower

1шт.

12

84377514

TUBE

Auxiliary, High Flow, Loader Valve To LH Tower

1шт.

13

84377928

HYD TUBE

Auxiliary, High Flow, LH Tower To Loader Arm

1шт.

14

84377931

HYD TUBE

Auxiliary, High Flow, LH Tower To Loader Arm

1шт.

15

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

16

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 25

1шт.

17

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

19

1546028C1

CLAMP,25.4mm ID x 82mm L

Tube

2шт.

20

225529A1

CLAMP,Dual, 25.4mm ID

Tube Clamp

1шт.

21

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

22

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Clamp, Top

5шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

24

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.
