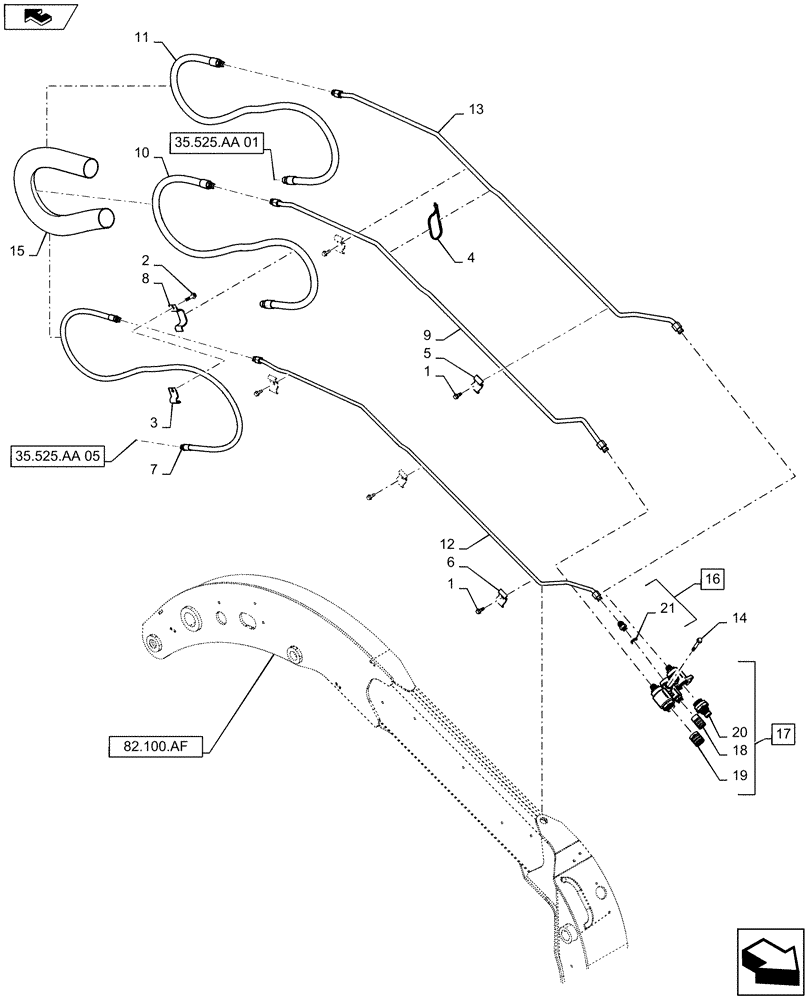

Запчасти Case SV250 (35.525.AA[02]) - AUXILIARY BOOM ARM PLUMBING, STANDARD FLOW (35) - HYDRAULIC SYSTEMS

1

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

5шт.

2

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

3

47374617

CLAMP,18mm ID, 12.5mm Bolt Hole, J Type

1шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

5

84252828

CLAMP,65.2mm L

Butterfly

2шт.

6

84254056

HOSE CLAMP,69.2mm L

Butterfly

3шт.

7

84281611

FLEXIBLE HOSE,10mm ID x 2085mm L, SAE 100R17

Case Drain

1шт.

8

84285091

HOSE CLAMP

Clamp

1шт.

9

84304103

RIGID TUBE

1/2" Female Coupler

1шт.

10

84304099

FLEXIBLE HOSE,15.88mm ID x 1905mm L, SAE 100R17

Chassis Plumbing To 1/2" Male Coupler Tube

1шт.

11

84304100

FLEXIBLE HOSE,15.88mm ID x 1935mm L, SAE 100R17

Chassis Plumbing To 1/2" Female Coupler Tube

1шт.

12

84297619

RIGID TUBE

Case Drain, Connects To 3/8" Female Coupler

1шт.

13

84304105

RIGID TUBE

1/2" Male Coupler

1шт.

14

84331287

SCREW,HWH, 3/8" - 16 x 3"

2шт.

15

84362110

SLEEVE,73mm ID x 78mm OD x 1070mm L

Hose

1шт.

16

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 21

1шт.

17

84173613

VALVE

Manifold, Connect Under Pressure, Incl 18 - 20, Years: -01-FEB-13

1шт.

17

47396759

VALVE

Manifold, Connect Under Pressure, Incl 18 - 20, Start Year: 01-FEB-13

1шт.

18

84390119

COUPLING

3/8" Female, Years: -01-FEB-13

1шт.

18

47396762

COUPLING,3/8" Female

3/8" Female, Start Year: 01-FEB-13

1шт.

19

84390118

COUPLING

1/2" Female, Years: -01-FEB-13

1шт.

19

47396761

COUPLING,1/2" Female

1/2" Female, Start Year: 01-FEB-13

1шт.

20

84390117

COUPLING

1/2" Male, Years: -01-FEB-13

1шт.

20

47396760

COUPLING,1/2" Male

1/2" Male, Start Year: 01-FEB-13

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
