(29.200.AI[03]) - FOOT CONTROLS MOUNTING ASSEMBLY

Запчасти Case SV250 (29.200.AI[03]) - FOOT CONTROLS MOUNTING ASSEMBLY (29) - HYDROSTATIC DRIVE

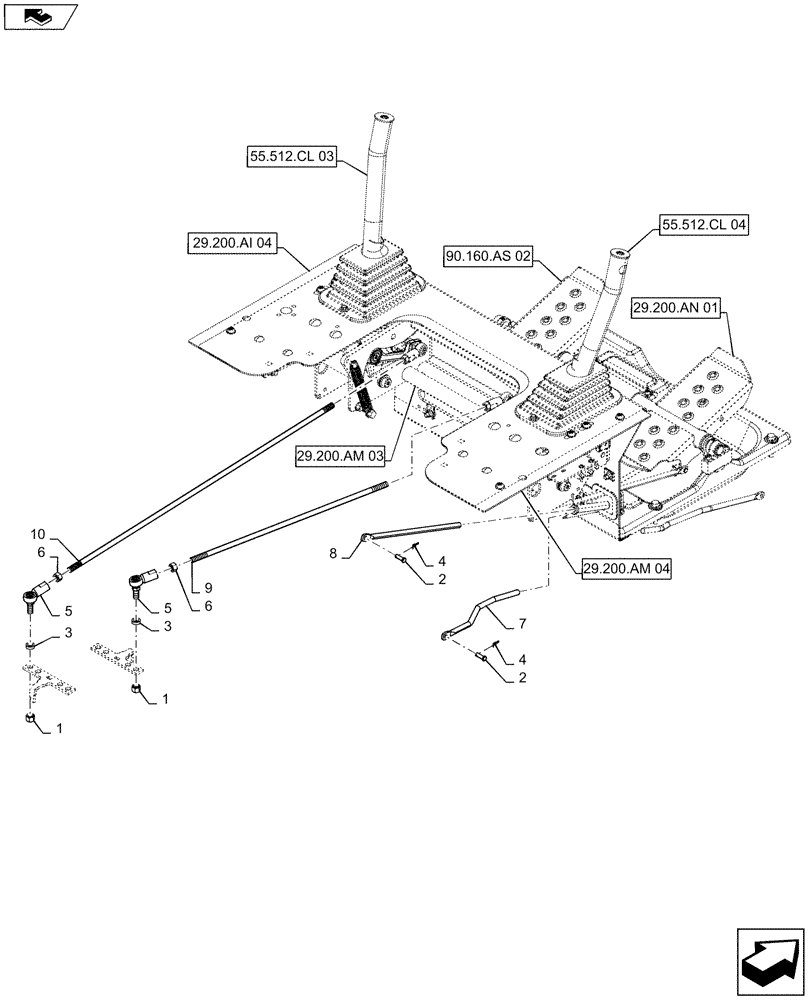

Схема запчастей Case SV250 - (29.200.AI[03]) - FOOT CONTROLS MOUNTING ASSEMBLY (29) - HYDROSTATIC DRIVE
29.200.am 03
9
5
6
2
7
5
90.160.as 02
1
8
4
2
4
home
29.200.am 04
55.512.cl 04
29.200.ai 04
3
29.200.an 01
1
55.512.cl 03
10
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

80855

NUT,Hex, 3/8" - 24

2шт.

2

234726

CLEVIS PIN,6.29mm OD x 20mm L

2шт.

3

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

0.385" ID x 0.625" OD x 0.198", ZND

2шт.

4

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

Cotter

2шт.

5

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

Rod End, 3/8" - 24 RH Thread, With Hex Drive Socket

2шт.

6

86509310

NUT,3/8" - 24, Gr 5

2шт.

7

84317960

ROD,M10 x 1.25 x 233.3mm L

Valve, Bucket Tip

1шт.

8

84317959

ROD,M10 x 1.25 x 278mm L

Valve, Boom Lift

1шт.

9

84300954

THREADED ROD

Ground Drive, 453mm

1шт.

10

84300956

THREADED ROD

Ground Drive, 741mm

1шт.
