Запчасти Case SV185 (35.220.AA[01]) - STANDARD GEAR PUMP (35) - HYDRAULIC SYSTEMS

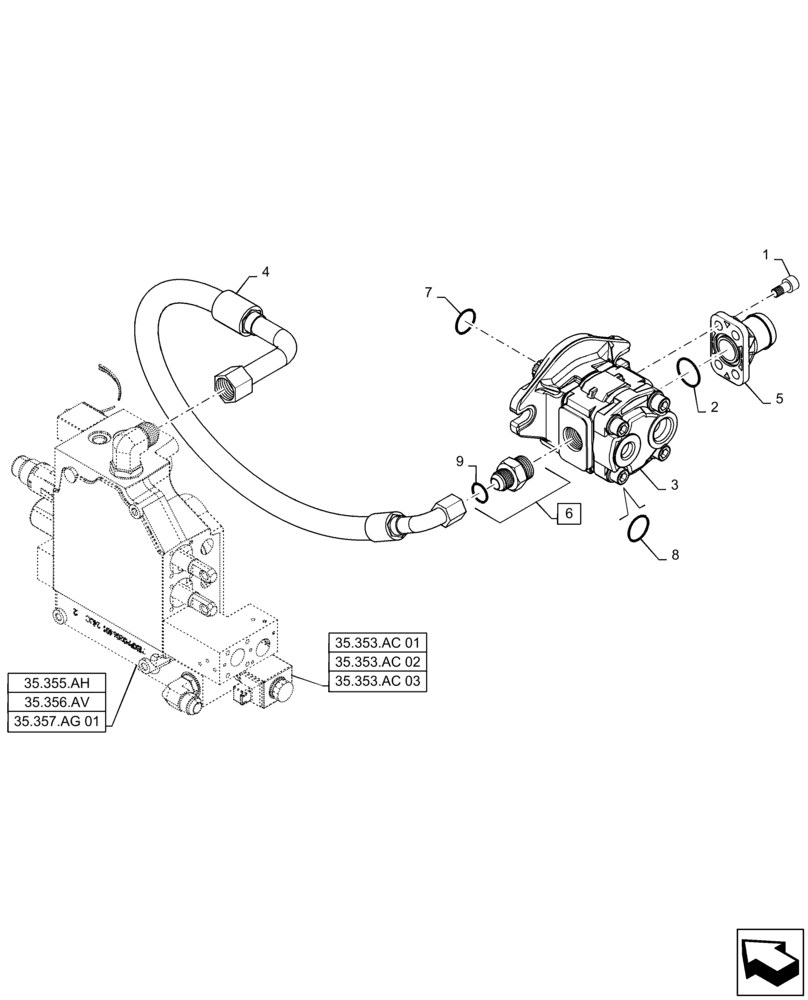

Схема запчастей Case SV185 - (35.220.AA[01]) - STANDARD GEAR PUMP (35) - HYDRAULIC SYSTEMS
4
3
35.353.ac 02
5
35.353.ac 03
35.357.ag 01
35.355.ah
8
35.353.ac 01
9
7
35.356.av
2
6
1

Артикул

Название

Примечание

Количество

1

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

2

14463580

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

1шт.

3

47375386

HYDRAULIC PUMP

27.8CC

1шт.

4

84330502

HOSE,9.53mm ID x 830mm L, SAE 100R17

Valve Supply

1шт.

5

84561027

FITTING

Gear Pump Suction

1шт.

6

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

Incl 9

1шт.

7

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

8

84389261

SEAL KIT

Pump

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 9
