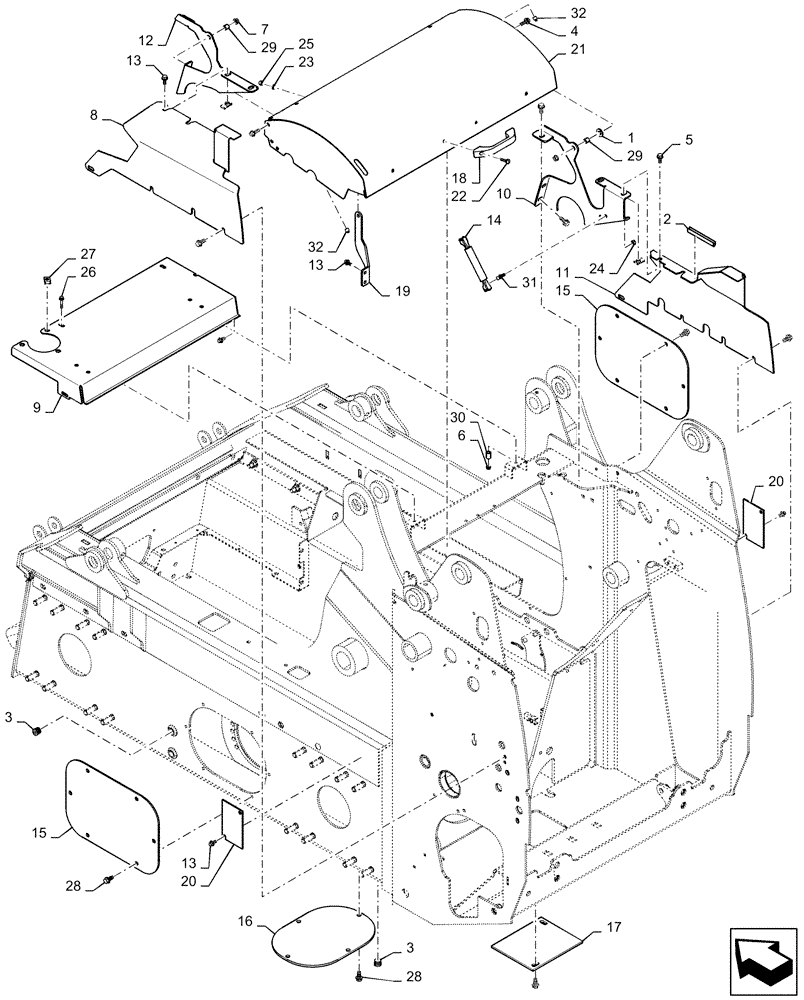

Запчасти Case SV185 (90.100.BI[01]) - REAR HOOD AND CHASSIS ACCESS COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

2

291186

PROTECTION STRIP,9.9mm W

1шт.

3

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

6шт.

4

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

47362820

PANEL

1шт.

9

47403591

ANGLE

1шт.

10

47417192

BRACKET

1шт.

11

47419780

SIDE PANEL

1шт.

12

47463673

BRACKET

1шт.

13

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

8шт.

14

400472A1

SPRING,10mm Rod, 38.1mm Stroke

1шт.

15

84295151

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

16

84299800

COVER PLATE

1шт.

17

84299809

COVER PLATE

1шт.

18

406256A1

HANDLE

1шт.

19

84317996

LOCKING TAB

1шт.

20

84370417

PLATE,141mm L x 86mm W x 3.68mm Thk

2шт.

21

84601972

HOOD

1шт.

22

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

23

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

24

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

25

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

26

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

2шт.

27

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

7шт.

28

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

30шт.

29

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

30

87036415

SPACER,9.25mm ID x 13.72 OD x 19.05mm L

2шт.

31

189609A1

BALL STUD,M8 x 1.25

2шт.

32

47591940

BUMPER

2шт.
