Запчасти Case SV185 (88.055.13) - DIA KIT, HANDLE, LEVEL 450, LH, WITH 2ND AUXILIARY, E-H CONTROLS (88) - ACCESSORIES

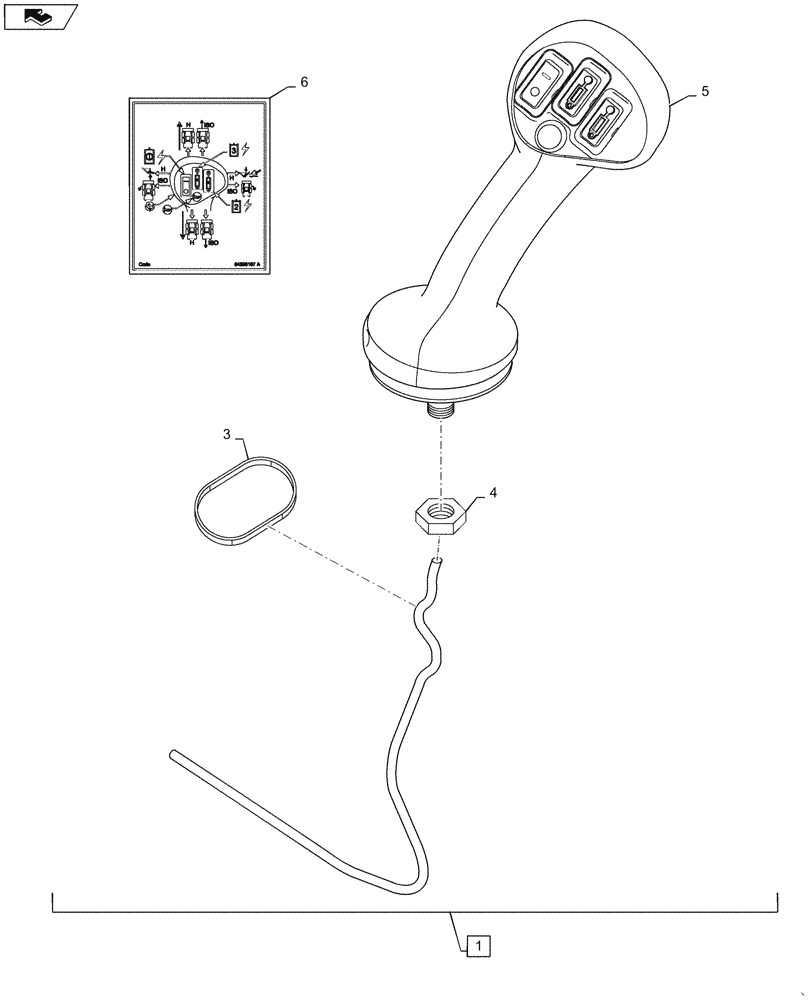

Схема запчастей Case SV185 - (88.055.13) - DIA KIT, HANDLE, LEVEL 450, LH, WITH 2ND AUXILIARY, E-H CONTROLS (88) - ACCESSORIES
home
4
6
1
3
5

Артикул

Название

Примечание

Количество

1

84428510

KIT

Handle - 450 Case LH - 2nd Auxiliary E - H, Incl 2 - 6

1шт.

2

84470443

INSTRUCTION

Sheet, Case Grip E - H, Not Shown

1шт.

3

263117

CABLE TIE,292.1mm L, Nylon, Black

6шт.

4

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

5

84396062

HANDLE GRIP

Joystick, Case Level 450 LH, 2nd Auxiliary

1шт.

6

84396166

DECAL

Case Level 450 LH, 2nd Auxiliary

1шт.

Выбрано товаров: 6
