Запчасти Case SV185 (88.055.09) - DIA KIT, HANDLE, LEVEL 300, RH GRIP, MECHANICAL CONTROLS (88) - ACCESSORIES

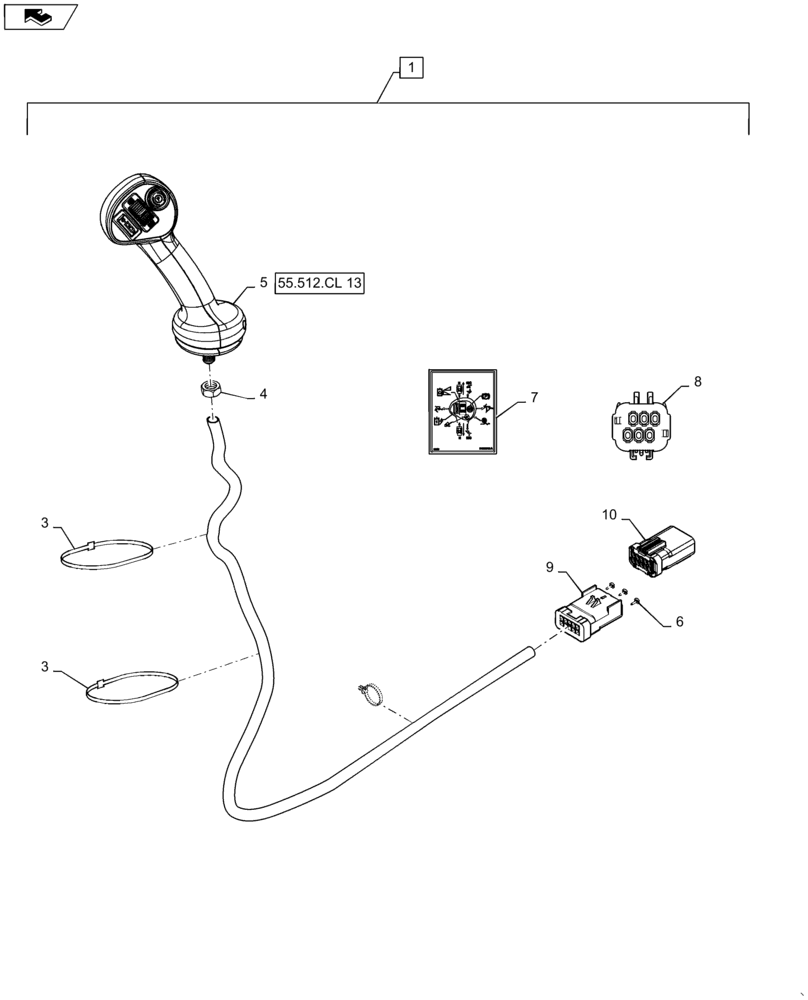

Схема запчастей Case SV185 - (88.055.09) - DIA KIT, HANDLE, LEVEL 300, RH GRIP, MECHANICAL CONTROLS (88) - ACCESSORIES
3
6
9
3
1
home
55.512.cl 13
10
7
8
5
4

Артикул

Название

Примечание

Количество

1

84428506

KIT

Handle - 300 Case RH, Mechanical, Incl 2 - 10

1шт.

2

84479393

INSTRUCTION

Sheet, Case Grip, Mechanical, Not Shown

1шт.

3

263117

CABLE TIE,292.1mm L, Nylon, Black

4шт.

4

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

5

84201276

HANDLE GRIP

Case Level 300 RH

1шт.

6

84279937

PLUG,Apex, 2.80mm

Connector, Wire, Cavity

11шт.

7

84353756

DECAL

Case Level 350 RH

1шт.

8

87382919

WIRE CONNECTOR,Male, 6 Cavities

Wire

1шт.

9

87382923

ELEC CONNECTOR,Male, 10 Cavities

Wire

1шт.

10

87382925

WIRE CONNECTOR,Female, 10 Cavities

1шт.

Выбрано товаров: 10
