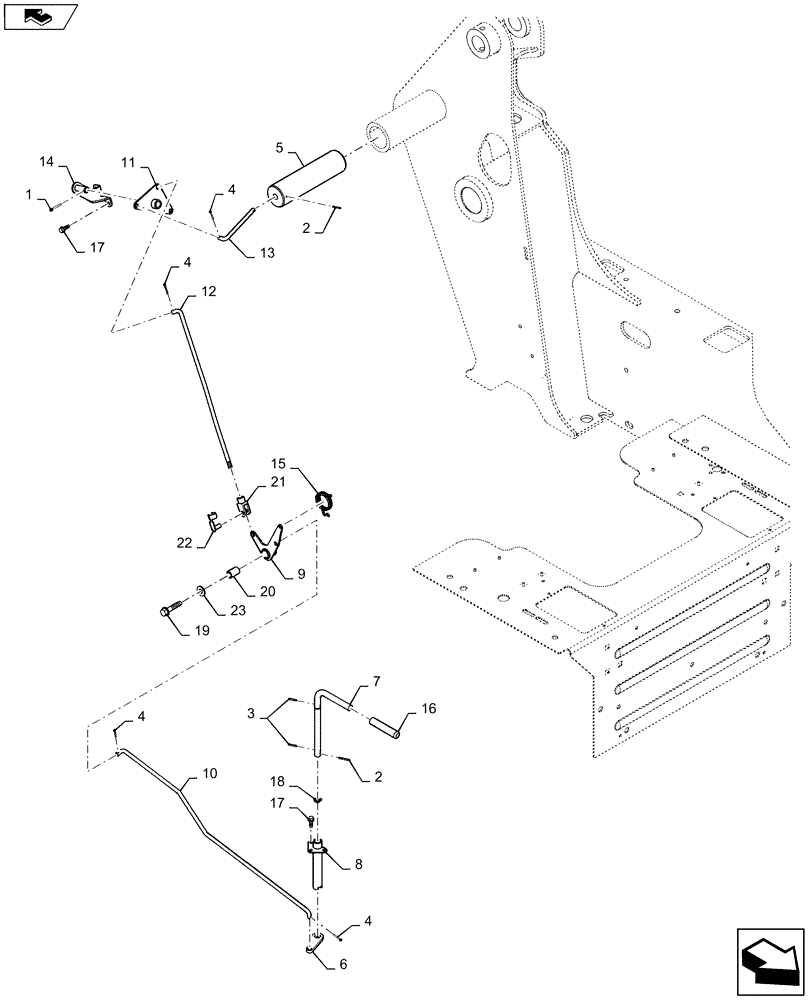

Запчасти Case SV185 (82.100.AH) - BOOM LOCK ASSY. (82) - FRONT LOADER & BUCKET

1

80755

COTTER PIN,1/8" OD x 1" L

1шт.

2

87455

SLOTTED PIN,1/8" OD x 1" OAL

2шт.

3

87663

LOCK PIN,1/8" OD x 3/4" L, Slotted Spring

2шт.

4

280250

COTTER PIN,3/32" OD x 3/4" L

5шт.

5

84325375

PIN,50.8mm OD x 192mm L

1шт.

6

84325531

LEVER

Handle

1шт.

7

84325533

LOCKING HANDLE

OAL 175mm , Years: -17-JUN-15

1шт.

7

47838204

LOCKING HANDLE

OAL 160mm, Start Year: 18-JUN-15

1шт.

8

84325537

RIGID TUBE

Handle Pivot, Years: -17-JUN-15

1шт.

8

47836663

TUBE

Handle Pivot, Start Year: 18-JUN-15

1шт.

9

84326066

BELLCRANK

Lower Boom Lock

1шт.

10

84327666

LINK

Lower Boom Lock

1шт.

11

84327667

BELLCRANK

Upper Boom Lock

1шт.

12

84327670

LIFTING ROD

Vertical Boom lock

1шт.

13

84327672

PIN,7.94mm OD

1шт.

14

84327675

PIVOT

LH

1шт.

15

84331883

TORSION SPRING,Torsion, 38.1mm OD x 12.19mm L

3.25 Coils

1шт.

16

84331884

GRIP,76mm L

Vinyl Sleeve

1шт.

17

86625224

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

5шт.

18

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

19

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

1шт.

20

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

1шт.

21

87602941

ADJUSTABLE CLEVIS,M8 x 16mm, Short

1шт.

22

86629892

CLEVIS PIN,5/16" OD x 0.940" L

1шт.

23

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.
