Запчасти Case SV185 (55.101.AC[04]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS, OPEN CAB (14-NOV-2016 & NEWER) (55) - ELECTRICAL SYSTEMS

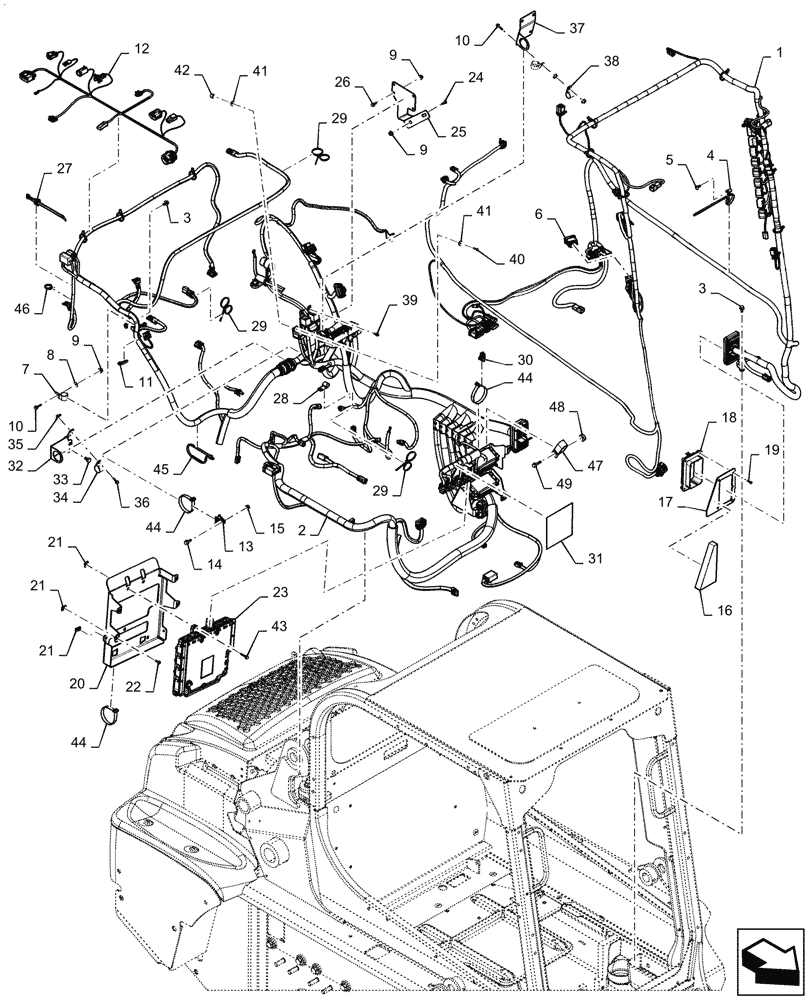

Схема запчастей Case SV185 - (55.101.AC[04]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS, OPEN CAB (14-NOV-2016 & NEWER) (55) - ELECTRICAL SYSTEMS
22
31
11
45
3
25
4
29
21
33
46
41
1
23
9
28
35
17
6
13
3
48
15
19
29
32
10
12
8
41
20
18
9
34
5
7
29
26
30
37
49
10
2
43
21
24
44
39
16
47
44
21
38
36
27
44
40
14
9
42

Артикул

Название

Примечание

Количество

1

47920669

WIRE HARNESS

Cab, EH

1шт.

2

47961503

WIRE HARNESS

Chassis, EH

1шт.

3

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

4

84420746

CABLE TIE,403.9mm L, Nylon

10шт.

5

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

6

84251343

SWITCH

Rocker, Drive Pattern

1шт.

7

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

8

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

9

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

7шт.

10

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

11

87668737

CABLE TIE,203.2mm L, Nylon, Black

2шт.

12

47954071

WIRE HARNESS

Chassis, RH Tower

1шт.

13

84360210

BASE

Tie

1шт.

14

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

15

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

16

47825018

FOAM INSULATION,172mm L x 27.9mm Thk

1шт.

17

47867182

Bulkhead Adapter

PLATE

1шт.

18

87718301

WIRE CONNECTOR,Flange

1шт.

19

47825034

SCREW,Pan Head, #10 - 14 x 5/8"

4шт.

20

47860657

BRACKET

UCM Support, Gray

1шт.

21

86625073

SPRING NUT,M6 x 1

10шт.

22

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

4шт.

23

47395504

ECU

1шт.

24

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

25

47832750

BRACKET

1шт.

26

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

27

84259663

CABLE TIE,228.6mm L, Nylon, Black

3шт.

28

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

29

82012869

CABLE TIE,300mm L, Nylon, Black

15шт.

30

47689101

MOUNT

Wire Harness

1шт.

31

47946326

DECAL

Fuse Box Layout, EH

1шт.

32

NS

NOT SERVICED

Harness Retention, Gray

1шт.

33

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

34

87307884

CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

35

87016585

NUT,Spring, M6 x 1

1шт.

36

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

37

NS

NOT SERVICED

Harness Retention

1шт.

38

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

39

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

2шт.

40

87308282

SCREW,HWH, #10 - 32 x 3/4"

1шт.

41

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

2шт.

42

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

43

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

4шт.

44

84360212

CABLE TIE,294.2mm L, Nylon

28шт.

45

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

46

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

47

47048664

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

48

47464479

SPACER,10.5mm ID x 25.4mm OD x 8mm L

1шт.

49

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

Выбрано товаров: 49
