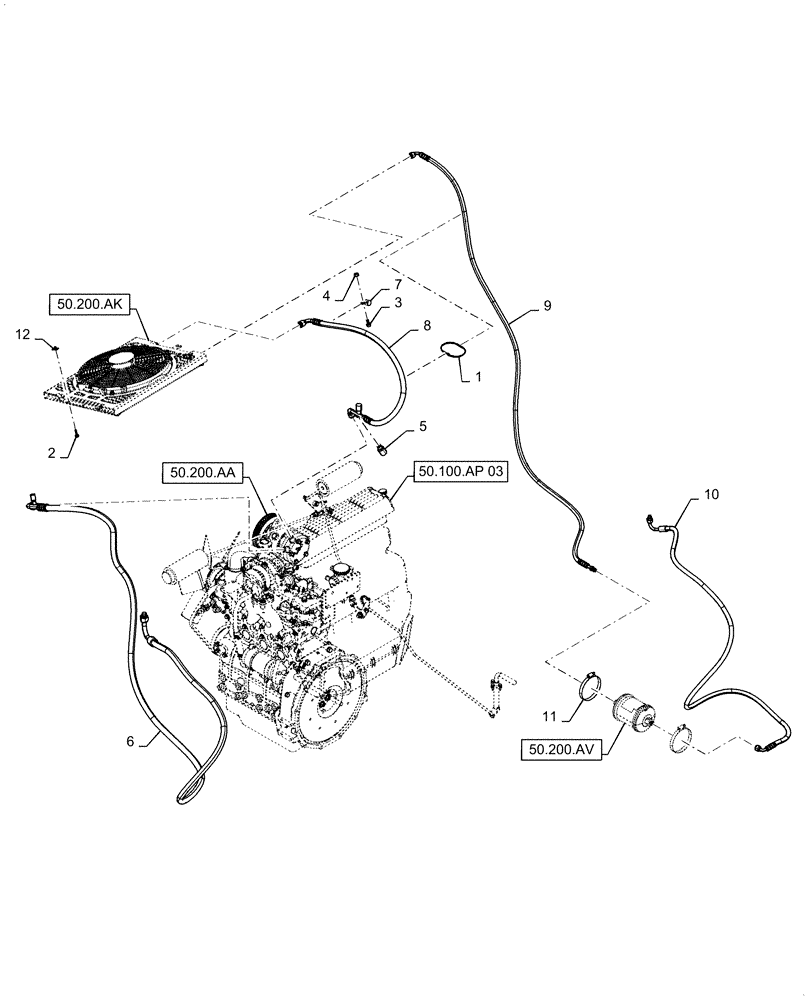

Запчасти Case SV185 (50.200.BY) - AIR CONDITIONER, PLUMBING - 04-JUN-2015 AND AFTER (50) - CAB CLIMATE CONTROL

1

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

2

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

3

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

5

87000227

SWITCH, A/C HIGH PRE

1шт.

6

47496643

A/C HOSE

Suction, Years: -30-AUG-16

1шт.

6

48037260

A/C HOSE

Suction, Start Year: 31-AUG-16

1шт.

7

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

8

47850103

AIR HOSE

Discharge, Years: -30-AUG-16

1шт.

8

47940034

A/C HOSE

Discharge, Start Year: 31-AUG-16

1шт.

9

84347312

HOSE,9.53mm ID x 2040mm L

Liquid, Years: -30-AUG-16

1шт.

9

47939965

A/C HOSE

Liquid, Start Year: 31-AUG-16

1шт.

10

84403037

HOSE ASSY.

Liquid, Years: -30-AUG-16

1шт.

10

47939973

A/C HOSE

Liquid, Start Year: 31-AUG-16

1шт.

11

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

12

86625073

SPRING NUT,M6 x 1

4шт.
