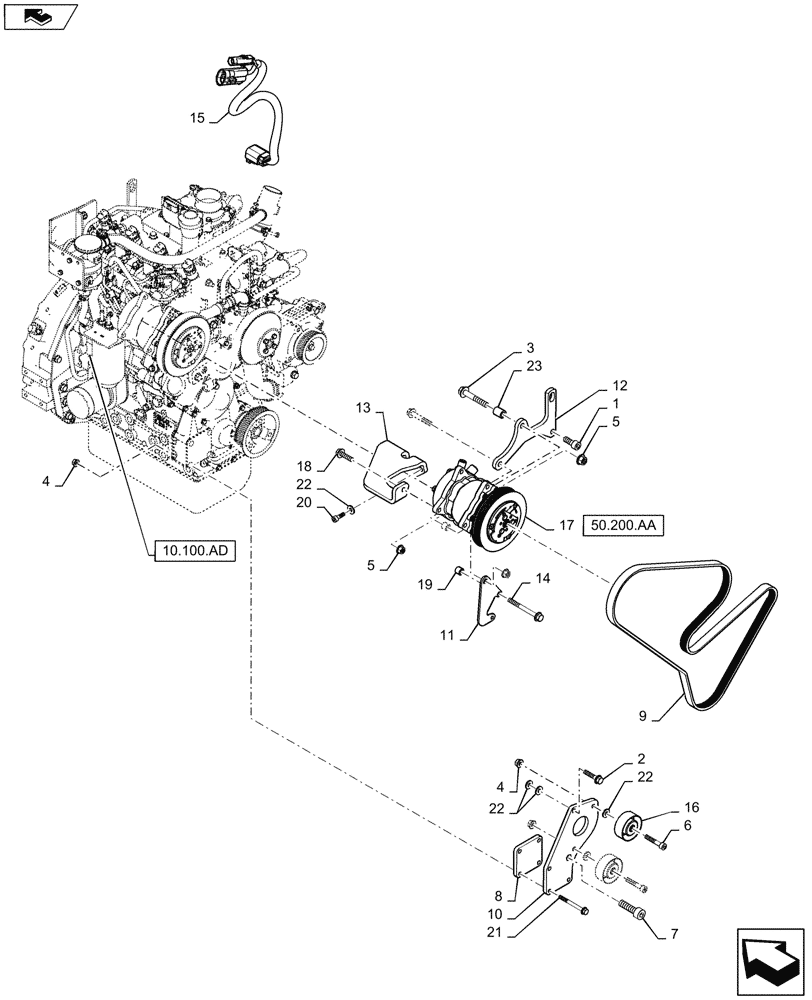

Запчасти Case SV185 (50.200.AT) - HVAC AIR COMPRESSOR MOUNTING (50) - CAB CLIMATE CONTROL

1

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

1шт.

2

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

3

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

2шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

5

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

6

412217

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8, Full Thd

2шт.

7

14359421

HEX SOC SCREW,M8 x 75mm, Cl 8.8

1шт.

8

47426071

PLATE

1шт.

9

47433412

BELT

1шт.

10

47567455

PLATE

M10 Holes

1шт.

11

47439432

PLATE

1шт.

12

47439434

BRACKET

1шт.

13

47439436

BRACKET

1шт.

14

84188432

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

15

84423509

WIRE HARNESS

1шт.

16

84544560

PULLEY,65mm OD

2шт.

16

2853006

PULLEY,65mm OD

, Start Year: 03-JUL-13

2шт.

17

84545270

AIRCOND. COMPRESSOR

, Years: -01-DEC-14

1шт.

17

84545270R

REMAN-COMPRESSOR

, Years: -01-DEC-14

1шт.

17

84545270C

CORE-COMPRESSOR

Return Number, Years: -01-DEC-14

1шт.

17

47741864

AIRCOND. COMPRESSOR

, Start Year: 01-DEC-14

1шт.

18

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

1шт.

19

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

2шт.

20

86625220

HEX SOC SCREW,M8 x 25mm, Cl 8.8

3шт.

21

86705425

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

3шт.

22

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

7шт.

23

87620895

BUSHING,12.98mm ID x 19.11mm OD x 23.1mm L

2шт.
