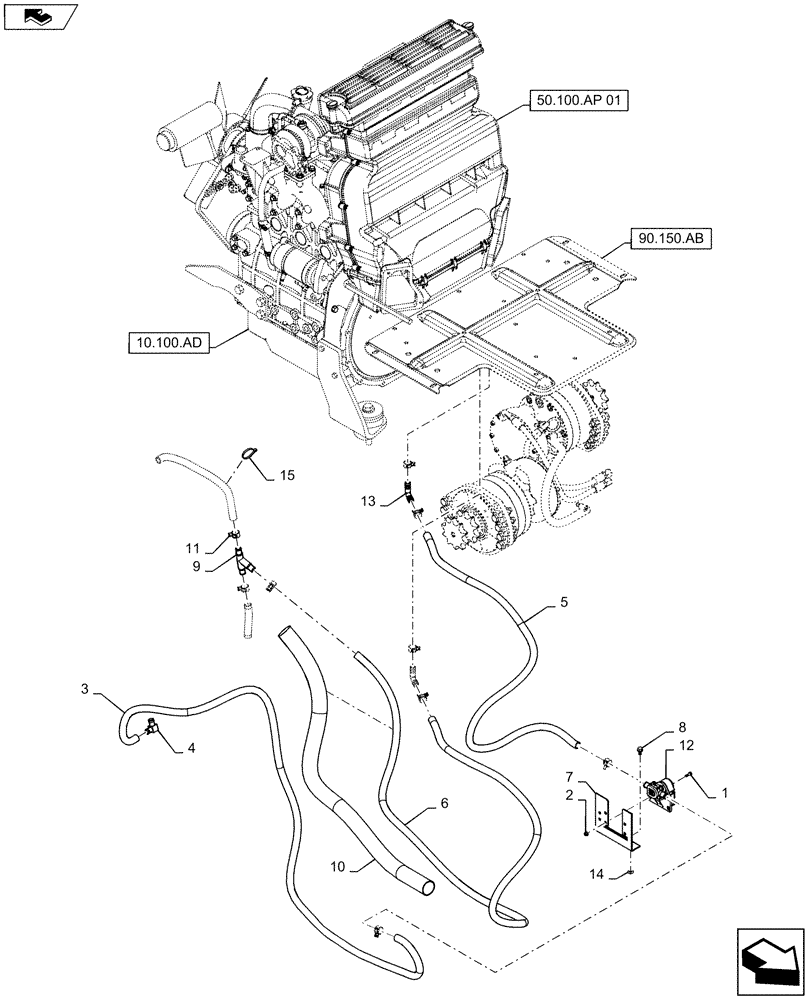

Запчасти Case SV185 (50.100.AC[01]) - HEATER PLUMBING BEFORE 09-JUL-2014 (50) - CAB CLIMATE CONTROL

1

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

2

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

3

47447127

HOSE ASSY.

1шт.

4

47453043

FITTING,M16 X 1.5 – 5-5/8”, Barb

1шт.

5

84357678

HOSE,15.5mm ID x 1635mm L

1шт.

6

84357840

HOSE,15.5mm ID x 2740mm L

1шт.

7

84559122

BRACKET

1шт.

8

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

9

86530043

FITTING,5/8” Y-Fitting

1шт.

10

87441006

TUBE,4.6mm ID x 1350mm L

1шт.

11

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

10шт.

12

87520839

VALVE

1шт.

13

127083A1

ELBOW,16mm OD x 17mm OD Bead

2шт.

14

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

2шт.
