Запчасти Case SV185 (05.100.01) - INITIAL STOCKING LIST, LIST A - PARTS REQUIRED FOR PLANNED MAINTENANCE (05) - SERVICE & MAINTENANCE

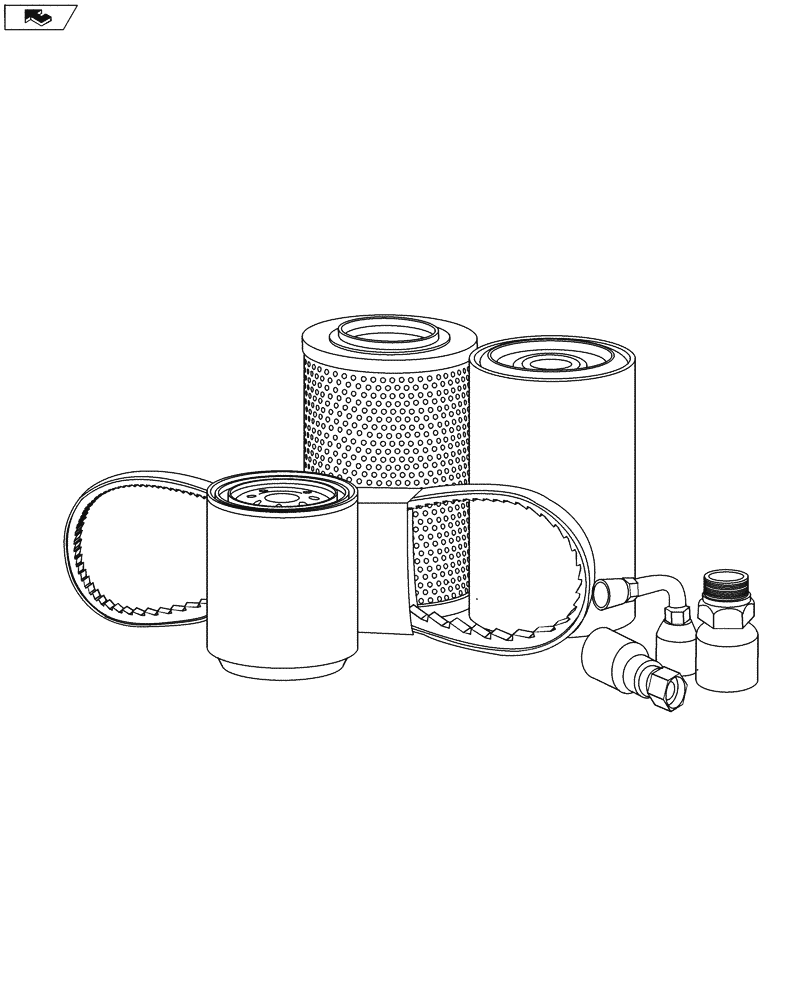

Схема запчастей Case SV185 - (05.100.01) - INITIAL STOCKING LIST, LIST A - PARTS REQUIRED FOR PLANNED MAINTENANCE (05) - SERVICE & MAINTENANCE
home

Артикул

Название

Примечание

Количество

1

84475542

ENGINE OIL FILTER

Main

1шт.

2

84299977

ELEMENT

Fuel Filter, Main

1шт.

3

84561653

FUEL FILTER

Pre-Fuel Filter, WIF

1шт.

WIF Sensor P/N 84527833

1шт.

4

47456328

ELEMENT

Hydraulic Return Filter, Spin On

1шт.

5

86982522

AIR FILTER

Primary, Air Cleaner

1шт.

6

86982523

AIR FILTER

Secondary, Air Cleaner

1шт.

7

84376814

CAB FILTER,430mm L x 110mm W x 30mm Thk

Service, A/C Or Heater Unit

1шт.

8

84376815

CAB FILTER,430mm L x 110mm W x 30mm Thk, Charcoal

Charcoal, Optional, Service, A/C Or Heater Unit

1шт.

9

47433412

BELT

Serpentine, With A/C

1шт.

10

47434127

BELT

Serpentine, Without A/C

1шт.

11

87803444

FUEL FILTER,79.2mm OD x 109.2mm L

Rear Door

1шт.

12

SBA110536010

ELEMENT

OMS Filter

1шт.

13

9611973

FUEL FILTER

In-line

1шт.

Выбрано товаров: 14
