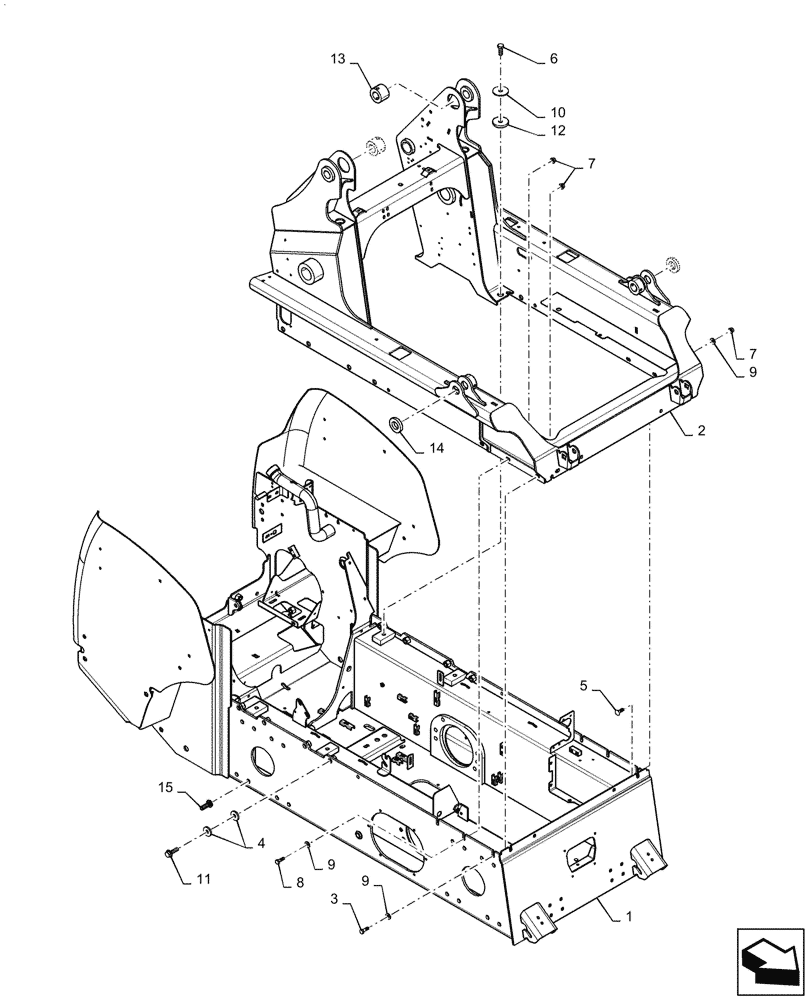

Запчасти Case SV185 (39.100.AB) - FRAME, CHASSIS (39) - FRAMES AND BALLASTING

1

NS

NOT SERVICED

Chassis, Tan

1шт.

2

47729596

FRAME

Upper Vert, Gray, Years: -28-MAR-17

1шт.

2

48035963

Upper Vert, Gray, Start Year: 29-MAR-17

FRAME

1шт.

3

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

4

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

16шт.

5

87035385

CARRIAGE BOLT,Sht Sq Nk, M12 x 35mm, Cl 8.8, Full Thd

1шт.

6

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

7

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

8

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

8шт.

9

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

10шт.

10

87687021

WASHER,17.3mm ID x 70mm OD x 4.5mm Thk

4шт.

11

87698849

BOLT,M16 x 50mm, Cl 10.9

8шт.

12

84298254

PLATE

Rear Mount

4шт.

13

84201518

HUB,38.5mm ID x 69.85mm OD x 48.5mm L

Upper Frame to H-Link

2шт.

14

86521978

HUB,38.23mm ID x 69.85mm OD x 12.7mm L

Upper Frame to Boom Lift cylinder

2шт.

15

84162937

STUD,M16 x 50mm, Cl 9.8

32шт.
