Запчасти Case SV185 (35.723.AA) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

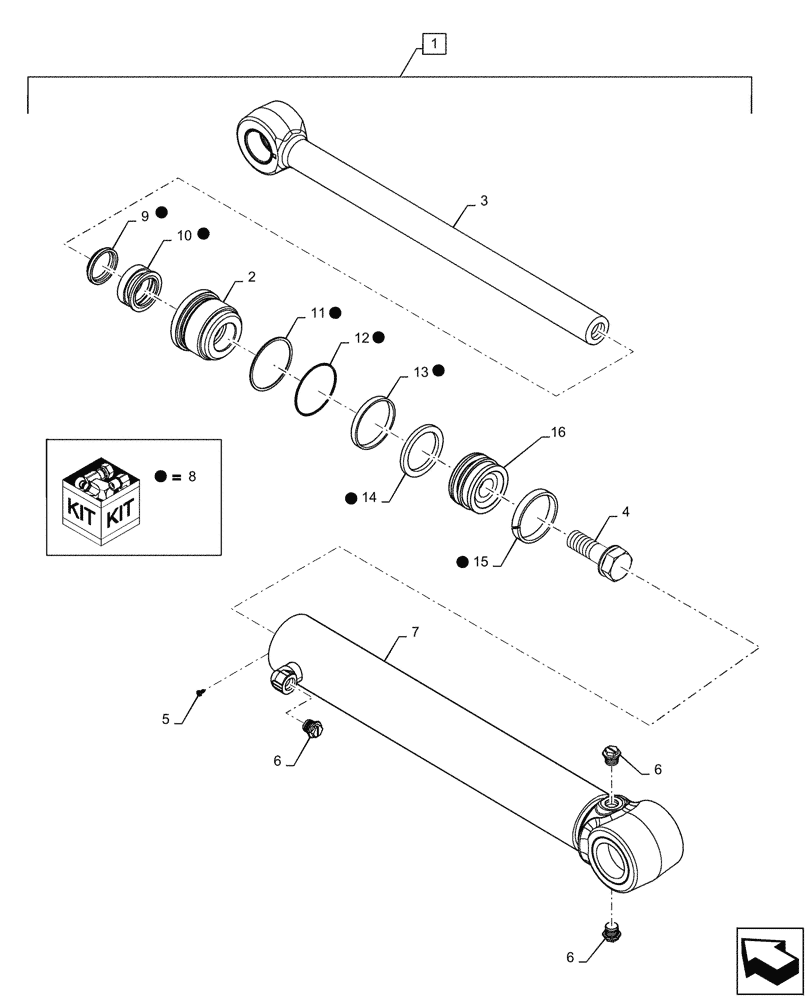

Схема запчастей Case SV185 - (35.723.AA) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS
6
10
16
3
8
8
4
8
8
1
2
8
8
7
8
14
15
11
13
6
8
6
9
5
12
8

Артикул

Название

Примечание

Количество

1

47364448

HYDRAULIC CYLINDER,34.9mm Rod, 410mm Stroke

1шт.

1

47364448R

REMAN-HYD CYLINDER

1шт.

1

47364448C

CORE-HYD CYLINDER

1шт.

2

47364485

GLAND,63.5mm Bore, 34.9mm Rod, 52.8mm W

1шт.

3

NSS

NOT SOLD SEPARAT

Rod

1шт.

4

86982436

SPECIAL BOLT,SEMS Hex, 7/8" - 14 x 2 - 1/2"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

86625122

PLUG,HWH, 9/16" - 18 x 0.69" Incl NSS O-Ring

3шт.

7

47364461

HYD TUBE,63.58mm Bore Dia

1шт.

8

47364494

SEAL KIT

Incl 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper, Incl in 8

1шт.

10

279532A1

SEAL

Rod Seal & Buffer 34.9mm Dia

1шт.

11

86512008

SEAL,60.89mm ID x 66.88mm OD x 1.27mm Thk

1шт.

12

52419

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

1шт.

13

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

1шт.

14

G100712

SEAL

Piston 63.5 Dia

1шт.

15

G100714

RING

Ring Wear 63.5 Dia

1шт.

16

84296126

PISTON,63.06mm Bore, 35mm Rod, 35.25mm W

1шт.

Выбрано товаров: 18
