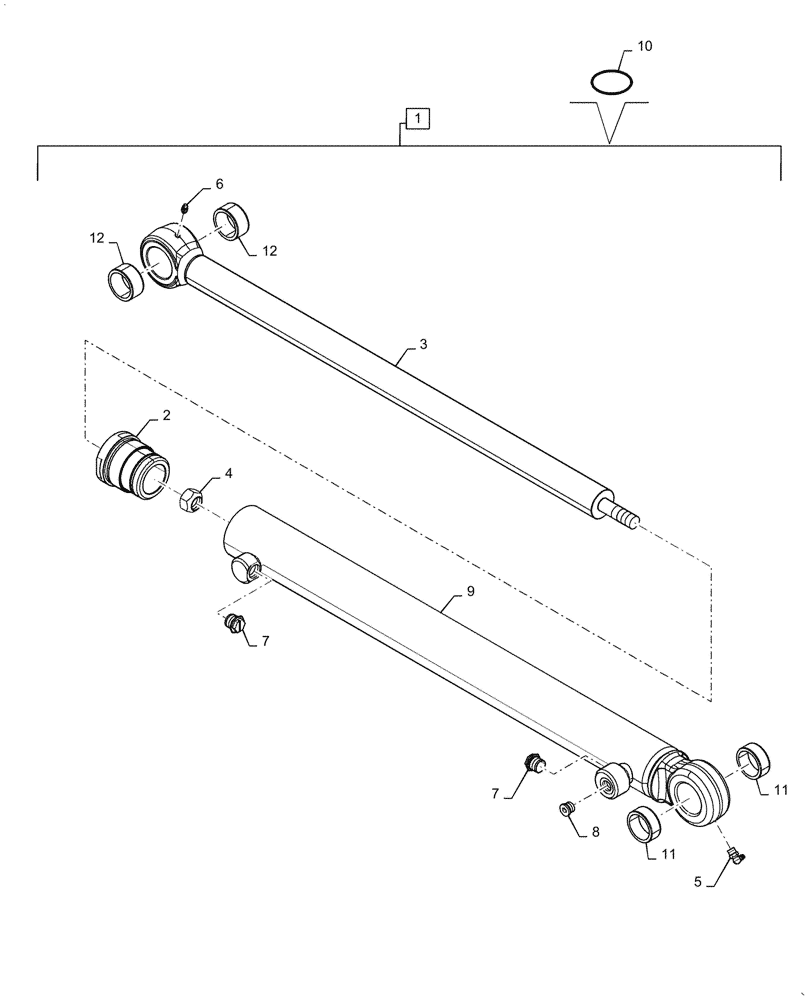

Запчасти Case SV185 (35.701.CB[02]) - LIFT CYLINDER, RH (35) - HYDRAULIC SYSTEMS

1

84543464

CYLINDER,Double Acting, 44.4mm Rod, 681mm Stroke

Lift, Incl 2 - 9

1шт.

1

84543464R

REMAN-HYD CYLINDER

Reman

1шт.

1

84543464C

CORE-HYD CYLINDER

Return Number

1шт.

2

84370081

PISTON ROD/GLAND

Package

1шт.

3

NSS

NOT SOLD SEPARAT

Piston Rod, 44.4mm OD, Incl in 1

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

2шт.

8

9625178

PLUG,9/16" - 18 ORB

1шт.

9

NSS

NOT SOLD SEPARAT

Hydraulic Tube, Incl in 1

1шт.

10

84480921

KIT

Services 1

1шт.

11

84241617

BUSHING,38.35mm ID x 47.62 OD x 18.8mm L

Tube

2шт.

12

84298801

BUSHING,38.35mm ID x 47.62 OD x 22.8mm L

Rod

2шт.
