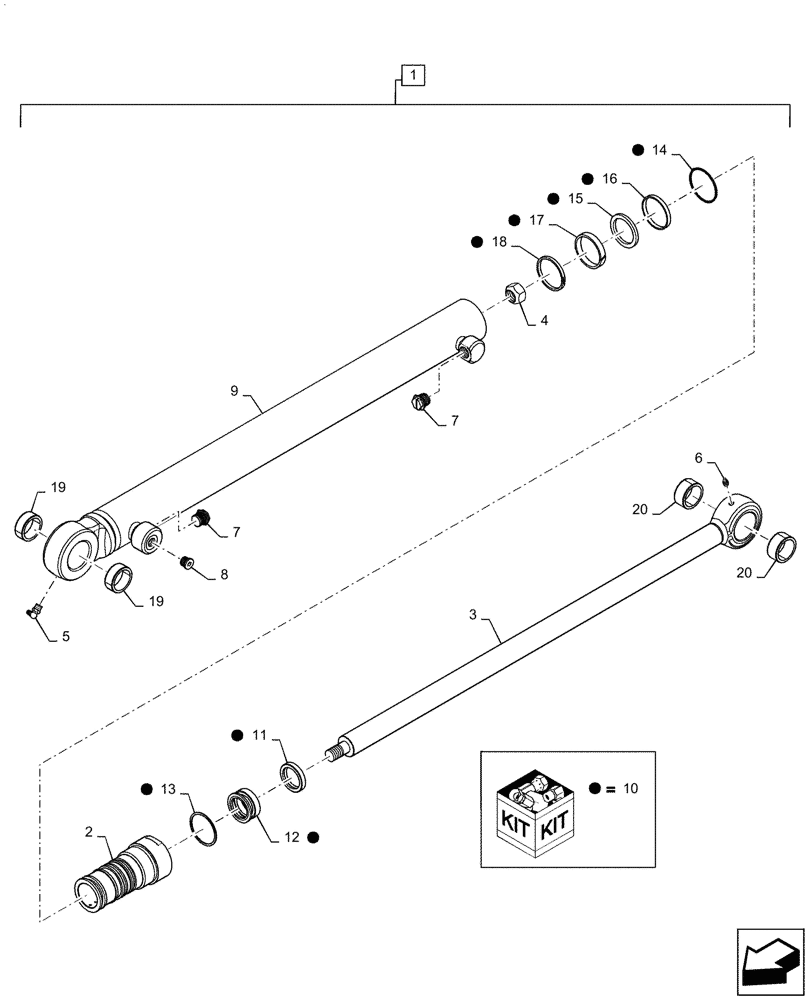

Запчасти Case SV185 (35.701.CB[01]) - LIFT CYLINDER, LH (35) - HYDRAULIC SYSTEMS

1

84543463

CYLINDER,Double Acting, 44.4mm Rod, 681mm Stroke

Hydraulic Lift, LH, Incl 2 - 9

1шт.

1

84543463R

REMAN-HYD CYLINDER

Reman

1шт.

1

84543463C

CORE-HYD CYLINDER

Return Number

1шт.

2

84370081

PISTON ROD/GLAND

1шт.

3

NSS

NOT SOLD SEPARAT

Lift Cylinder Piston Rod, Incl in 1

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

2шт.

8

9625178

PLUG,9/16" - 18 ORB

1шт.

9

NSS

NOT SOLD SEPARAT

Hydraulic Tube, Incl in 1

1шт.

10

84480921

KIT

Services 1, Incl 11 - 18

1шт.

11

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

12

1542875C1

SEAL KIT,44.4mm Rod

1шт.

13

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

14

510185

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

15

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

1шт.

16

G100712

SEAL

1шт.

17

G100714

RING

1шт.

18

191319A1

RING

1шт.

19

84241617

BUSHING,38.35mm ID x 47.62 OD x 18.8mm L

Tube

2шт.

20

84298801

BUSHING,38.35mm ID x 47.62 OD x 22.8mm L

Rod

2шт.
