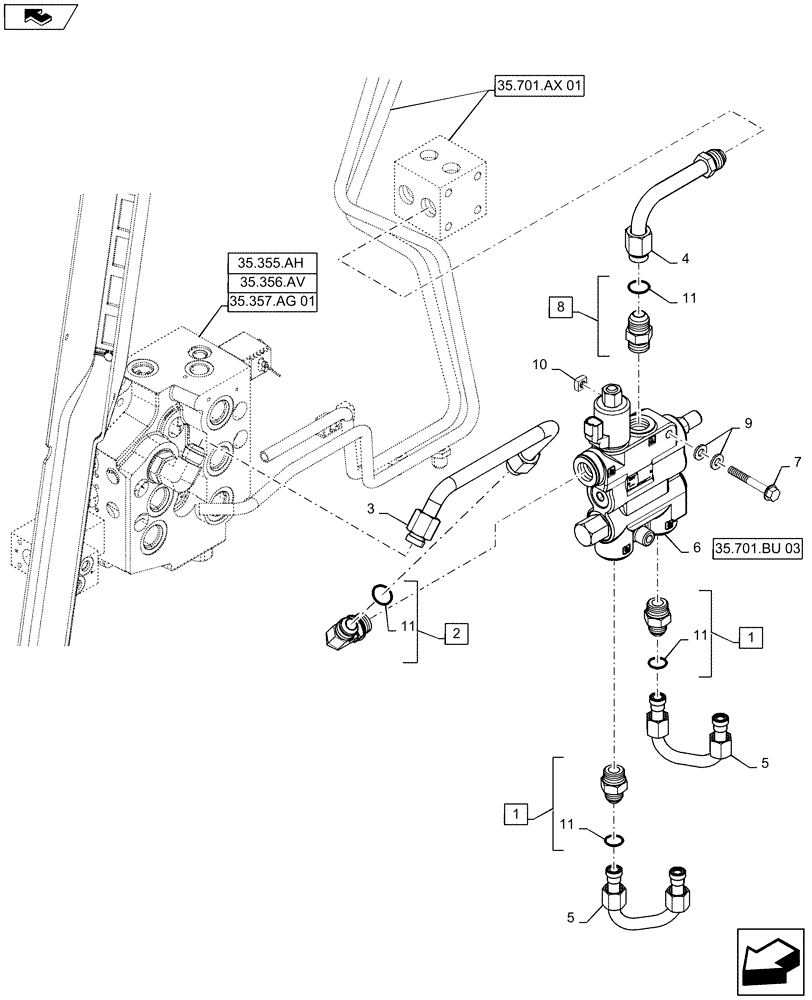

Запчасти Case SV185 (35.701.BU[02]) - SELF LEVELING (35) - HYDRAULIC SYSTEMS

1

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

2

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

3

84186140

RIGID TUBE

1шт.

4

84258865

RIGID TUBE

1шт.

5

84258866

RIGID TUBE

2шт.

6

84416570

VALVE

1шт.

7

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

8

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

1шт.

9

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

10

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

11

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.
