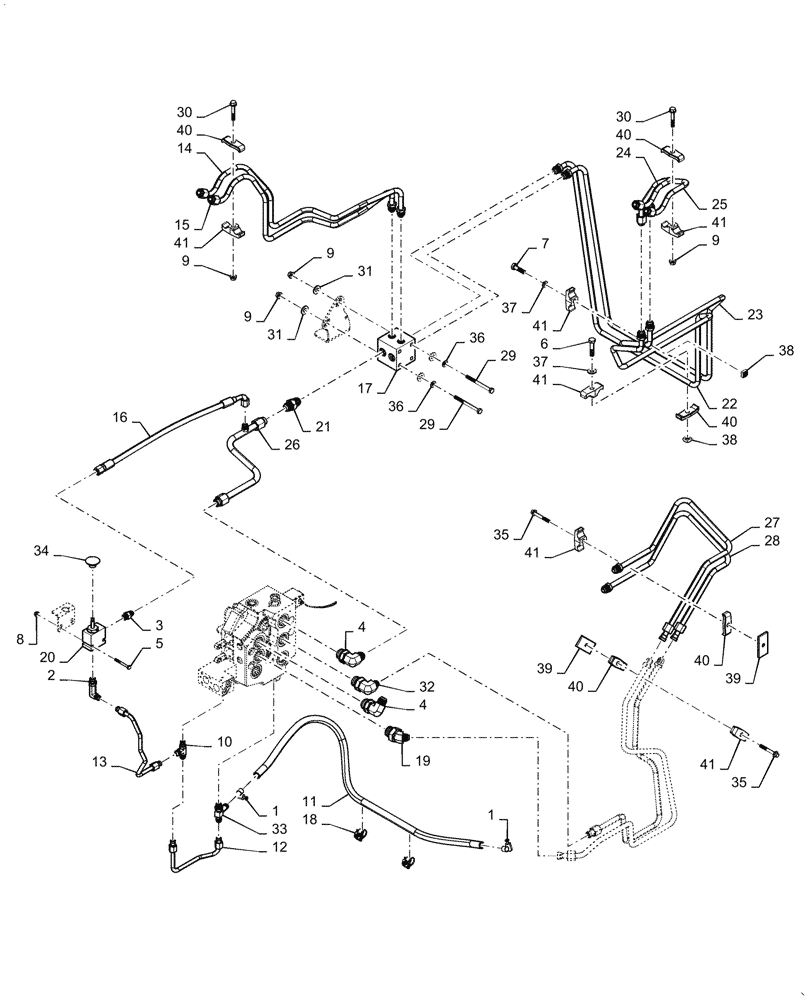

Запчасти Case SV185 (35.701.AX[01]) - LOADER VALVE PLUMBING 03-OCT-2016 AND AFTER (35) - HYDRAULIC SYSTEMS

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

, Years: -30-JAN-17

1шт.

2

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

, Start Year: 31-JAN-17

1шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

4

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

2шт.

5

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

6

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

7

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

8

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

10

47451735

TEE,3/8” JIC x 1/4” ORB x 3/8” JIC

1шт.

11

47735108

HOSE,12.7mm ID X 1060mm L

1шт.

12

47966042

HYD TUBE

LDR Valve Drain

1шт.

13

47976179

HYD TUBE

PRV Drain

1шт.

14

84178521

TUBE

Manifold to RT Arm, Lower

1шт.

15

84178523

TUBE

Manifold to RT Arm, Lift

1шт.

16

84201224

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

Override, Years: -30-JAN-17

1шт.

16

48093517

Override, Start Year: 31-JAN-17

HYDRAULIC HOSE,6.3mm ID x 535mm L, SAE 100R16

1шт.

17

84258823

HYDRAULIC MANIFOLD

Block

1шт.

18

84259663

CABLE TIE,228.6mm L, Nylon, Black

2шт.

19

84289681

45 ELBOW,3/4" - 16 JIC x 1-1/16" - 12 ORB

1шт.

20

84294239

VALVE

Boom Override

1шт.

21

84373457

ORIFICE

Directional

1шт.

22

84377532

TUBE

Manifold to LFT Arm, Lift

1шт.

23

84377539

TUBE

Manifold to LFT Arm, Lower

1шт.

24

84377541

TUBE

Left Fender, Lift

1шт.

25

84377543

TUBE

Left Fender, Lower

1шт.

26

84378484

RIGID TUBE

VLV to Manifold, Lift

1шт.

27

84479154

TUBE

Tip Ext

1шт.

28

84479161

TUBE

Ret Ext

1шт.

29

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

30

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

31

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

32

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

33

87459930

TEE

6MJ x 60RB x 8 Beaded

1шт.

34

87522292

KNOB

Override Valve

1шт.

35

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

2шт.

36

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

37

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

38

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

2шт.

39

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

40

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

5шт.

41

D120679

CLAMP,Tube, 1/2"

6шт.
